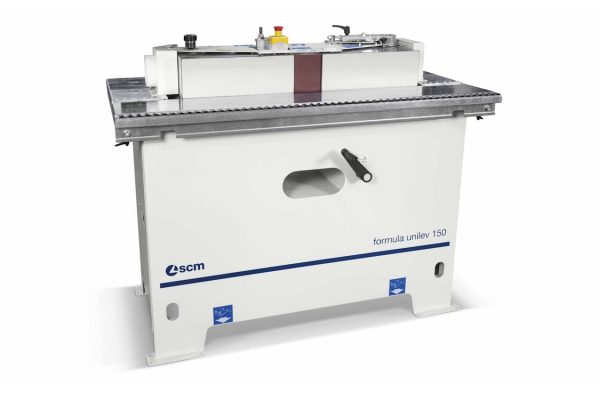

SCM Formula Unilev 150 Belt Sander
The SCM Formula Unilev 150 Belt Sander is a universal sanding centre with oscillating vertical belt, for craftsmen and professional workshops.
Manufacture – SCM Formula
Condition – New
Price – From £9,502 (ex VAT)
Flexibility and sturdiness – The machine is featured with a motor for the belt feeding with two speeds: 12 and 24 m/sec.
Oscillating belt movement through dedicated motor and gear motor.

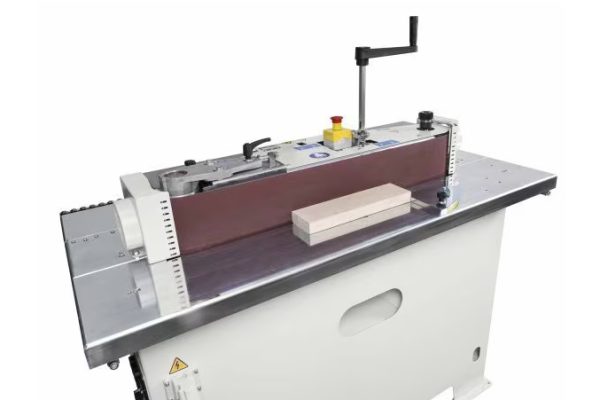

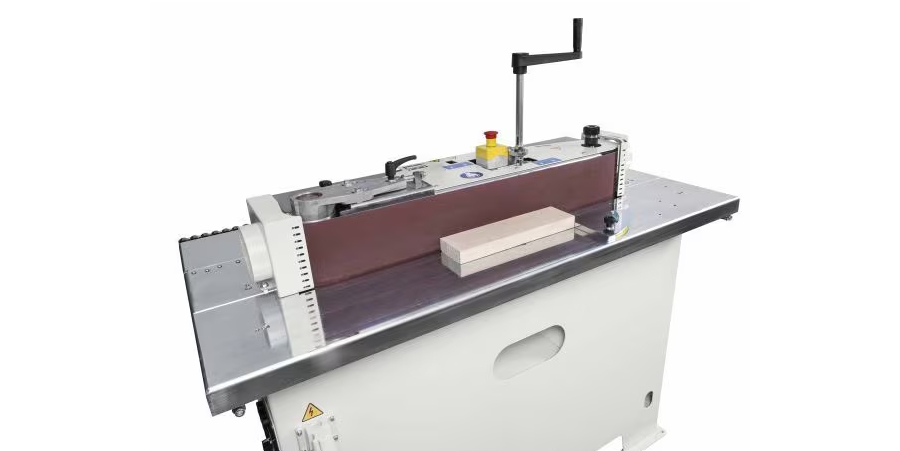

The best support for the work-piece – The mobile front extension makes easy the support of large dimensioned panels on the worktable.

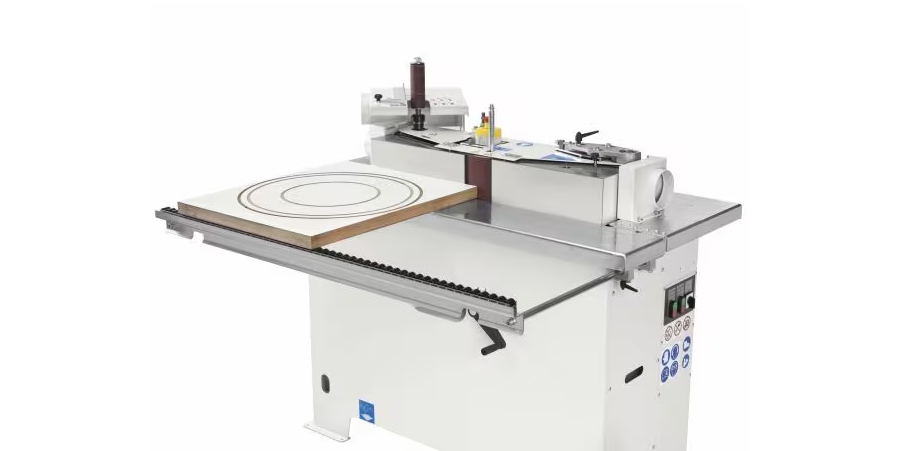

Perfect sanding on shaped work-pieces – A machine even more flexible, with the tiltable worktable and the supplementary table equipped with rubber rollers and integrated dust extraction, ideal for sanding shaped work-pieces (it can be quickly installed and removed).

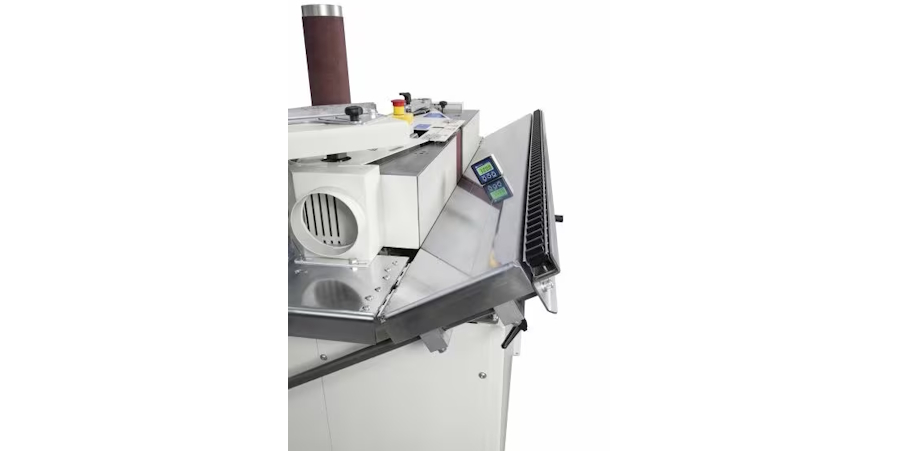

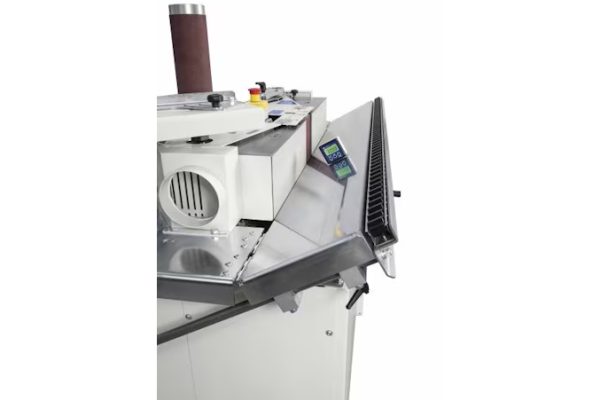

Solutions for every requirement – On the rear side of the machine, the worktable has an adjustable stop for the processing of tilted work-pieces. The belt can be adjusted in height for safe work-piece processing.
| unilev 150 |
||
|---|---|---|
| Worktable dimensions (*total width) | mm | 1440 x 710* |
| Table and fence tilting | degrees | 0 ÷ 45 |
| N.2 belt speeds | m/s | 12/24 |
| Motor power (* belt with S1 2-speed) | kW | 2,2/3* |
| Abrasive belt length | mm | 2170 |
| Abrasive belt height | mm | 150 |
| Oscillating unit vertical movement | mm | 130 |
| Options |
|---|
| Retractable table extension with rollers |
| Supplementary table for processing with rollers complete with suction connection |
| Accessories kit |
| Rubber roller, 8 mm diameter, complete with pin and ER32 collet chuck |
| Pneumatic roller, 70 mm diameter, with ER32 collet chuck |
