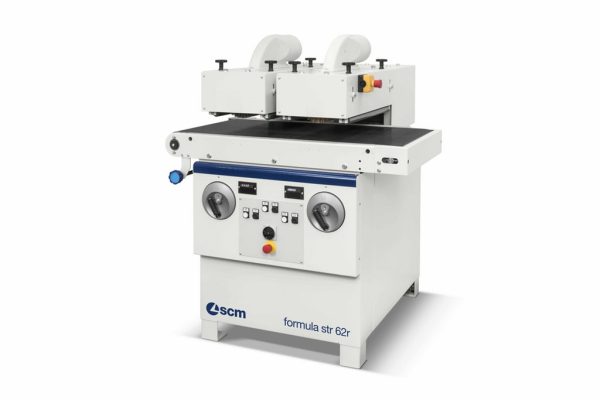

SCM Formula STR 62 Brush Sander

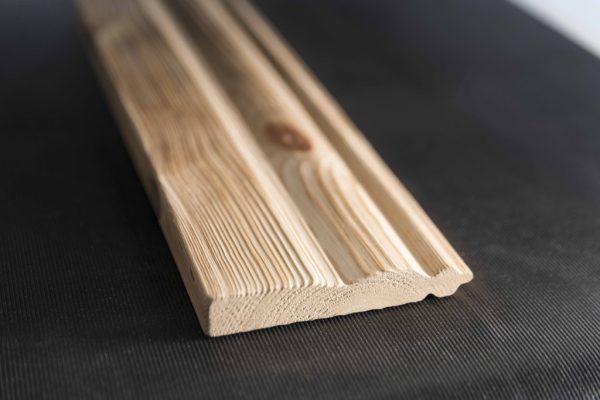

The SCM Formula STR 62 Brush Sander is the standard formula rustication unit/brushing machine. The ideal solution for rustication processing that highlight the hardwood vein or to sand the surfaces of cupboard doors/details in solid wood and veneered or MDF panels.
They are available in “r” versions with steel and Tynex® brushes, dedicated to the rustication of solid wood or in “I” versions standard fitted with abrasive insert brushes and inverter controlled motors for surface sanding.
Manufacture – SCM Formula
Condition – New
Price – From £12,509 (ex VAT)

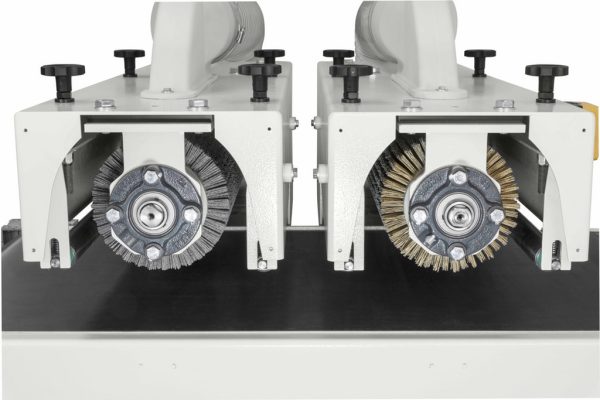

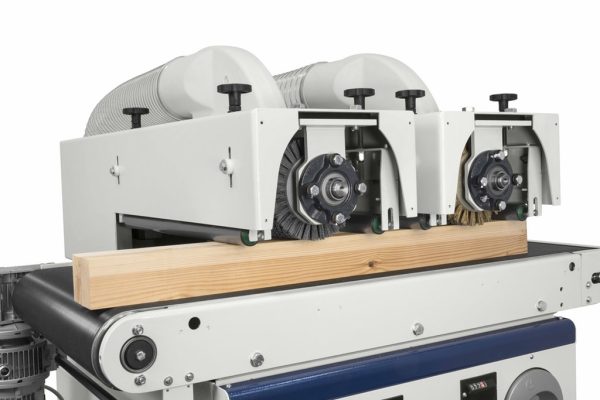

Perfect finish – The double operating unit allows to obtain the request finish in a single passage.
Effective extraction system – The large diameter exhaust hoods grants an optimal dust extraction.
The best adherence – Thanks to the rubber belt with vertical grooves.

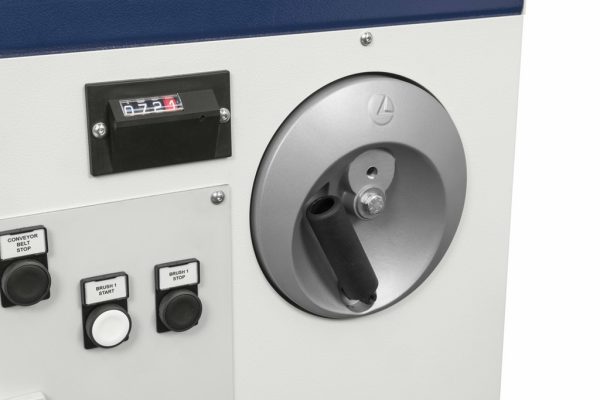

Operating units lifting – by means of handwheels and numerical readout.
| Technical Details | STR 62R | STR 62L |
|---|---|---|
| Working units | 2 | 2 |
| Working width | 600mm | 600mm |
| Maximum working height | 300mm | 300mm |
| Units motor power @ 50 Hz | 4kW | 4kW |
| Feed belt motor power @ 50 Hz | 0,37kW | 0,37kW |
| Dust extraction hoods | 2 x 150mm | 2 x 150mm |
| Brush speed | 1500g/min | 100 ÷ 1500g/min |
| Feed speed | 3 ÷ 20m/min | 3 ÷ 20m/min |
| Brush diameter | 190 / 190mm | 230 / 230mm |
| Net weight | 750kg | 750kg |
| Dimensions (LxDxH) | L 1300mm D 1200mm H 1550mm | L 1300mm D 1200mm H 1550mm |
| Options |
|---|
| Powered operating units lifting with digital readouts |
| Nylon brush (in place of the sanding brush, 600 mm width) |
| Jigsaw cross unit creating saw blade effect (first operating unit) |
| Steel brush (wire 0,2 mm) |
| Steel brush (wire 0,3 mm) |
| Tynex brush (60 grit) |
| Tynex brush (80 grit) |
