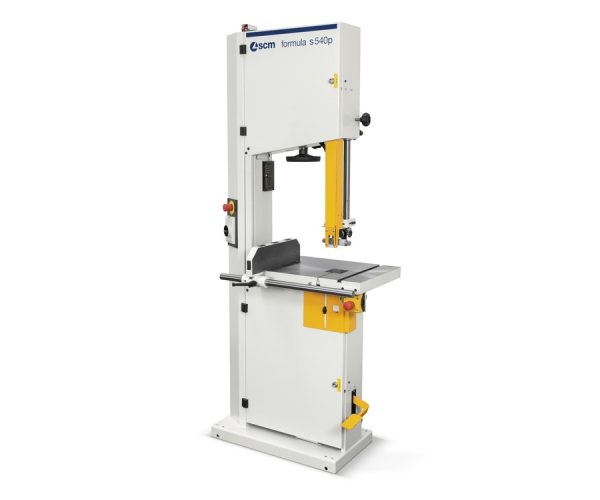

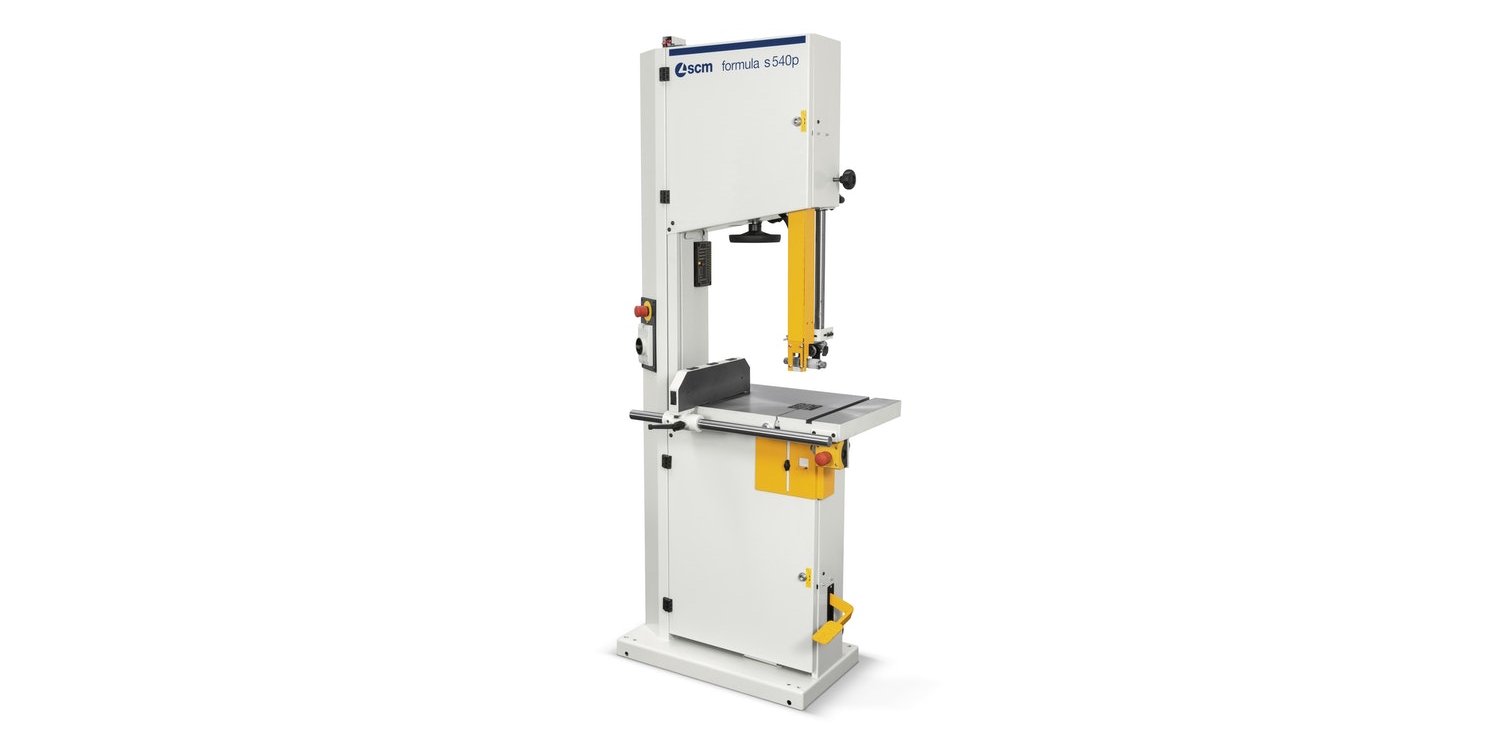

SCM Formula s540p Bandsaw
SCM Formula s540p Bandsaw – a high precision, professional bandsaw for the D.I.Y. woodworker and joinery workshop.
Manufacture – SCM minimax
Condition – New
Price – From £3,899 (ex VAT)
The S540p is the big brother of the S440p. For those looking for single-phase power, but with a larger throat for increased resaw capacity, this is the machine for you. With all of the features of its smaller brother, this bandsaw is for when you need to resaw up to 20” of material. With the right blade, you can easily make your veneers from those big resaw project pieces!
Solidity and sturdiness
Very thick, cast iron wheels, as well as the worktable, running on sealed for life ball bearings.
Safety first
Total safety machining with telescopic protections with rack work to the blade.
Perfect results
A perfect cut result is assured by the top and bottom high precision blade guides. Practical machines suitable also to perform straight and tilted cuts on wood, plastic and aluminium.
| Function | Measurement |
|---|---|
| s 540 p | |
| Worktable dimensions | 520 x 720mm |
| Cast iron saw wheels (dia) | 540mm |
| Saw wheels width | 38mm |
| Max. cutting height | 500mm (20″) |
| Max. cutting width | 520mm |
| Worktable tilting | 0° ÷ 45° (20°) |
| Min./max. blade dimensions | 6/35mm |
| Three-Phase Motor Power (S1) Starting From | 2,2kW (3)Hp |
| Options |
|---|
| Fence for angular cuttings (15×4 mm groove) |
| Steel blade |
| Wheels for machine movement |
| Industrial single phase plug and socket |
| Three-phase motor – 3 kW (4 hp) |
| Single-phase motor – 1,5 kW (2 hp) |
| Single-phase motor – 2,2 kW (3 hp) |
