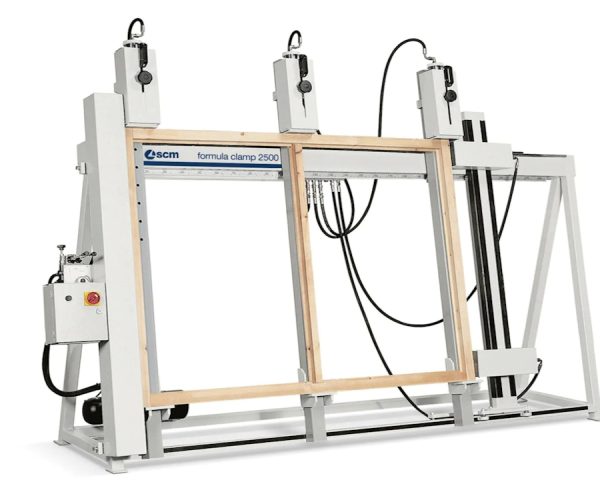

SCM Formula Clamp 2500
The SCM formula clamp 2500, with it’s sturdy frame and very practical positioning and adjustment, is the ideal solution for the gluing and assembly of many typical products of joinery workshops.
Manufacture – SCM
Condition – New
Price – From £8,299 (ex VAT)

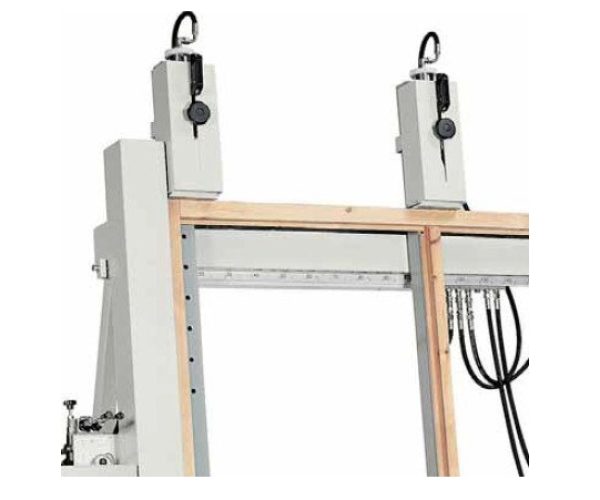

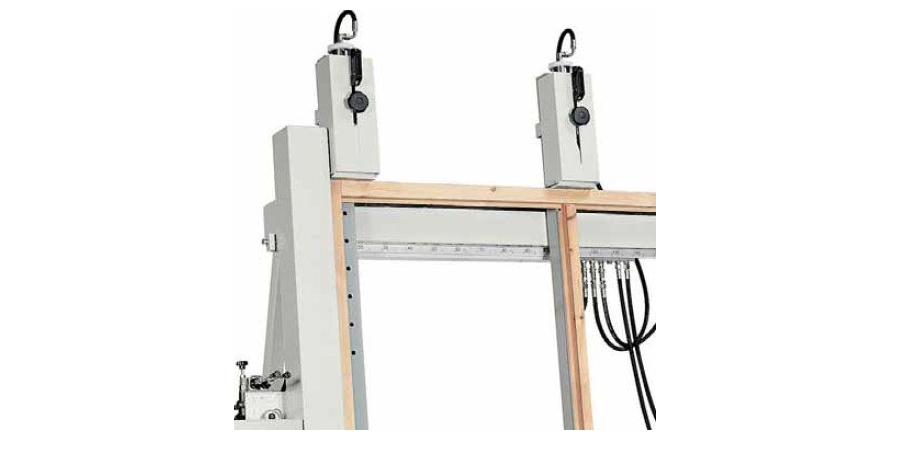

Hydraulic cylinders
The simple and rapid vertical beams positioning system allows a very simple hydraulic cylinders adjustment.
Lower cast iron supports
Even more machine sturdiness with the lower cast iron supports.

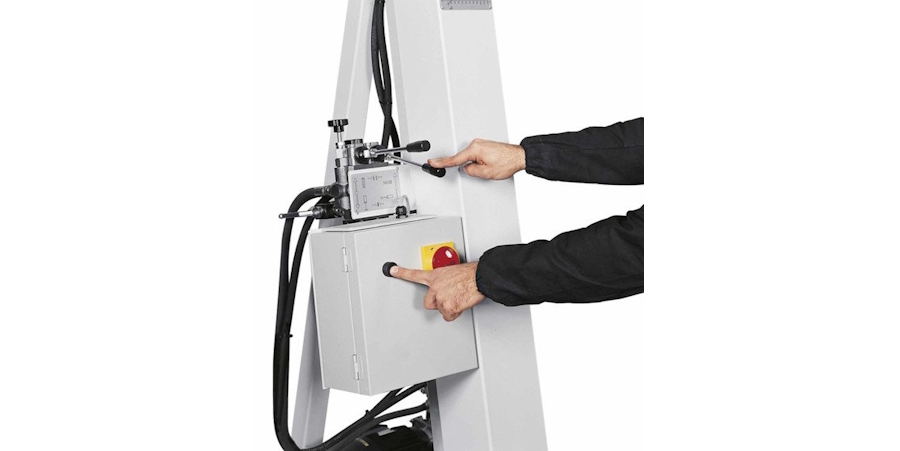

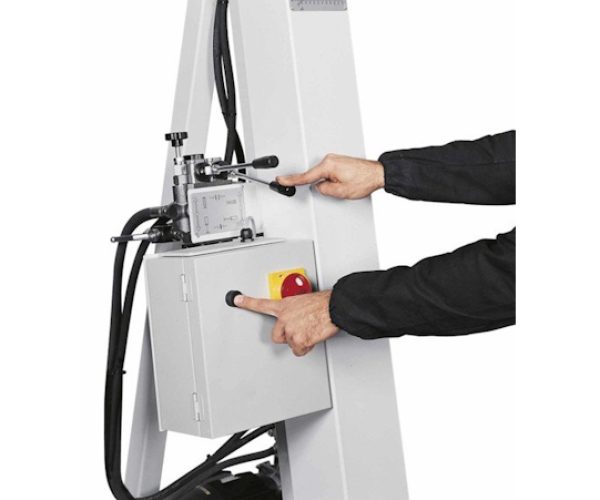

Control panel
The hydraulic cylinders pressure is controlled by practical levers and a control panel which is equipped with a valve with reading monometer and a locking cock for the cylinders pressure maintaining. The process is always under control.
| Function | Measurement |
|---|---|
| Working Dimensions | 2500 x 1800mm |
| Stroke Of The Vertical Hydraulic Cylinders | 150mm |
| Trust Of Each Vertical Hydraulic Cylinders | 1270kg |
| Stroke Of The Horizontal Hydraulic Cylinders | 120mm |
| Trust Of Each Horizontal Hydraulic Cylinders | 770kg |
| Options |
|---|
| Additional vertical beam with hydraulic cylinder (each) |
| Wood-thrust front presser |
| Extended working length to 500 mm (each) |
| Extended working height to 200 mm |
| Counterweights for vertical cylinders (each) |
