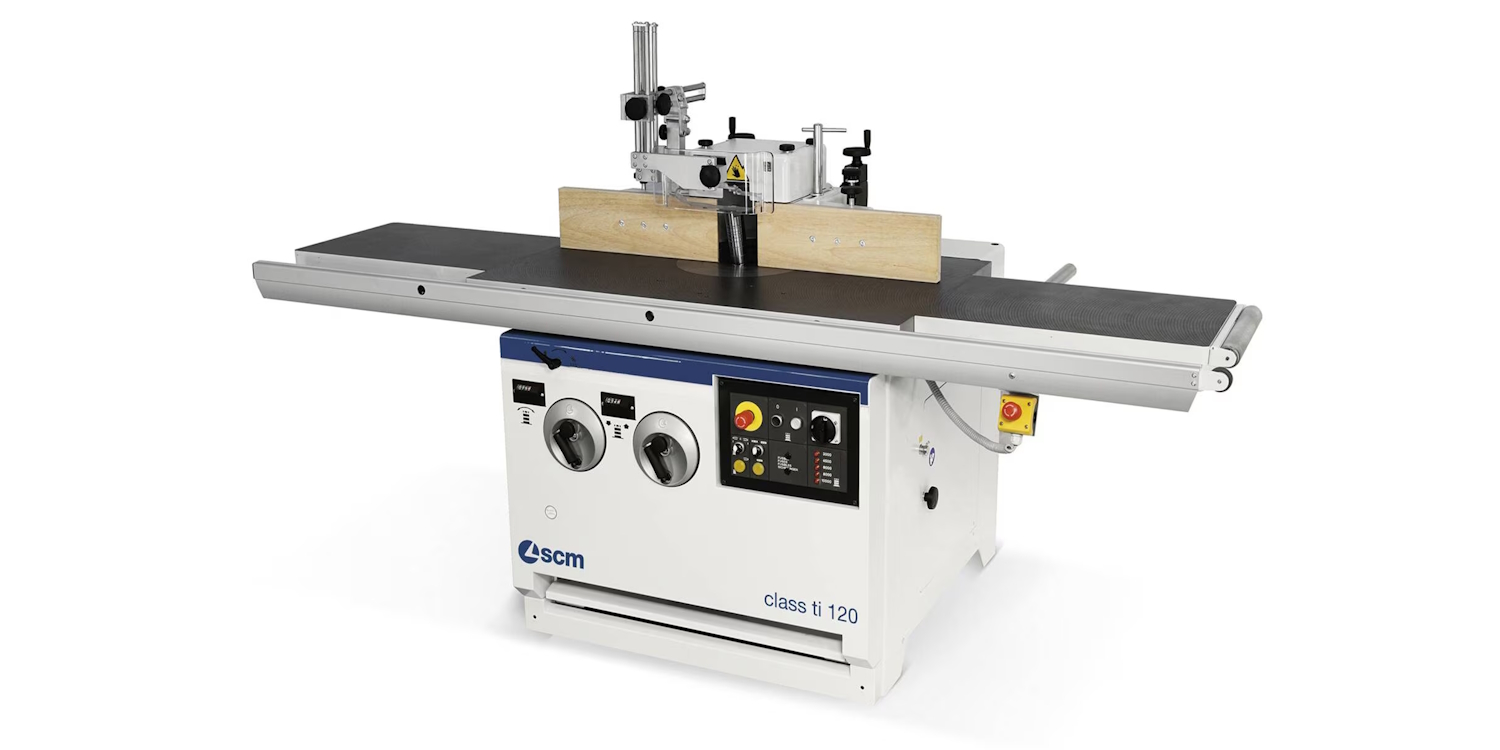

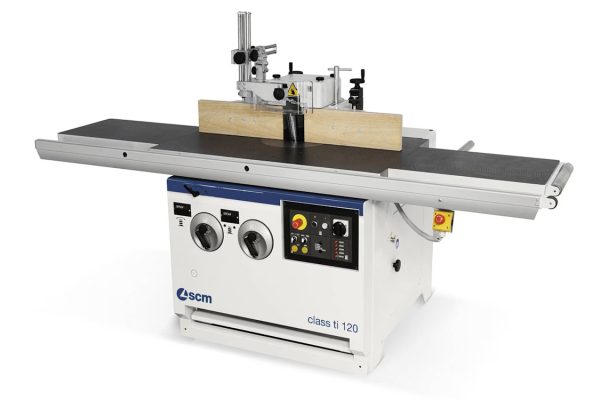

SCM Class ti120 Spindle Moulder
The SCM Class ti120 Spindle Moulder – The best solution for every application.
Precision and reliability with the technological devices that guarantee reduced machine set up times, greater safety and ease-of-use.

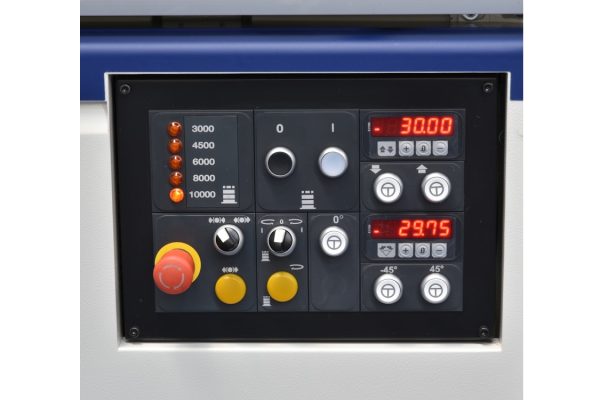

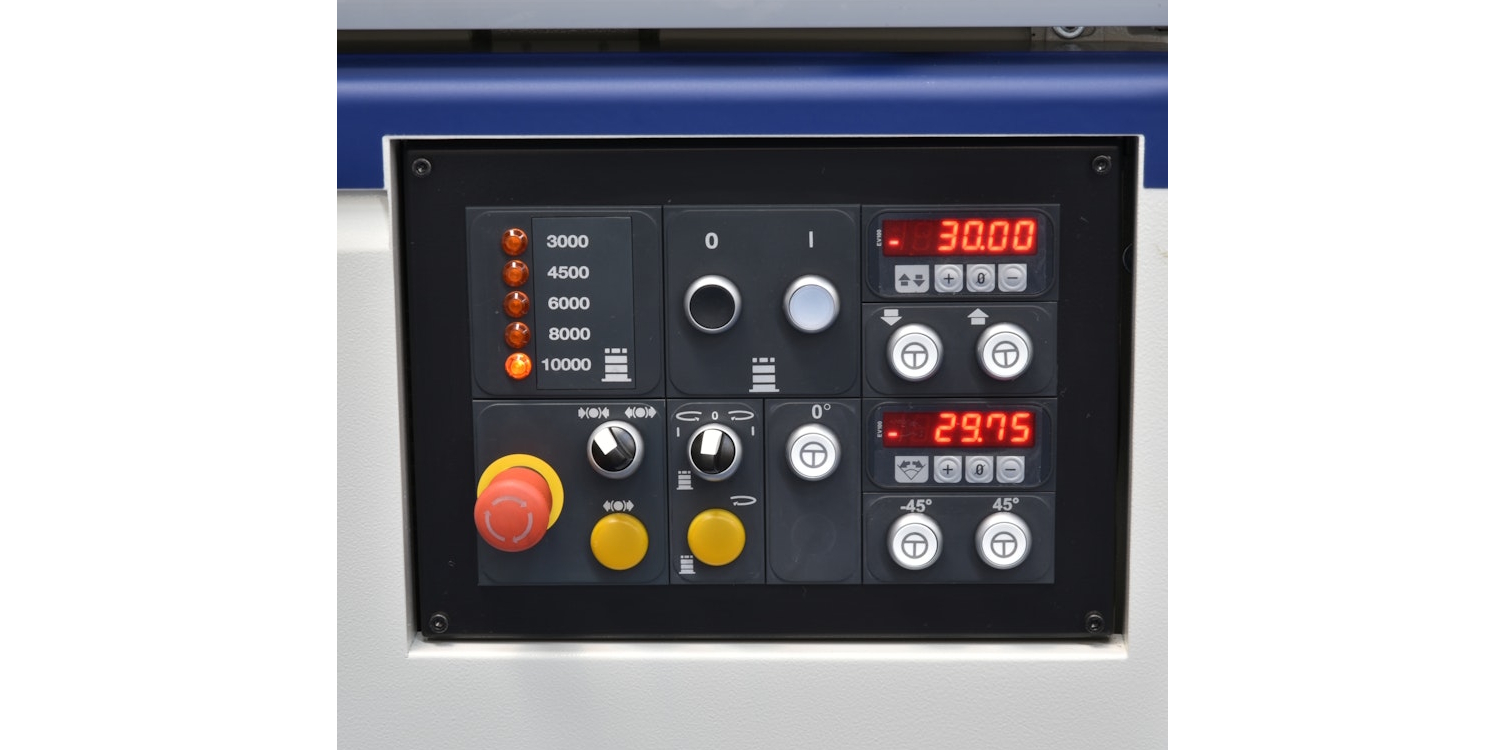

Set up precision and reliability. The operator easily adjusts all movements due to a hand wheel with mechanical decimal readouts located on the front of the machine.
Spindle moulder fence with mechanical programming: maximum set-up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.
Easy access to the spindle to carry out different machining with the optional “Flex” system for the rapid exclusion of the fence from the working table.
Manufacture – SCM
Condition – New
Price – From £10,690 (ex VAT)
Function | Measurement |
---|---|
Worktable Dimensions | 1200 x 810mm |
Ø 30 – 35 (Ø 40 – 50) Spindle Height | 140 (180)mm |
Spindle Tilting | +/- 45° |
Spindle Base Projection From Table | 25mm |
Max. Tool Diameter Retractable Under Table | 320 x 60mm |
Options |
---|
Spindle moulder fence with mechanical adjustment |
“FLEX” system for spindle moulder fence with mechanical adjustment |
Aluminium fence instead of wooden fence |
Spindle speeds 1300/3000/4500/6000/9000 rpm |
MK4 interchangeable spindle |
Spare spindle (for MK4 interchangeable spindle) |
MK4 right tool taper, complete with ring and collet |
MK4 left tool taper, complete with ring and collet |
“T-SET” rapid tool locking |
“LL” version with 2 cast-iron profiling extensions |
Carriage on fixed table for small tenoning operations |
“TL” version for tenoning-profiling (C.E.) |
7kW motor power |
9kW motor power |
