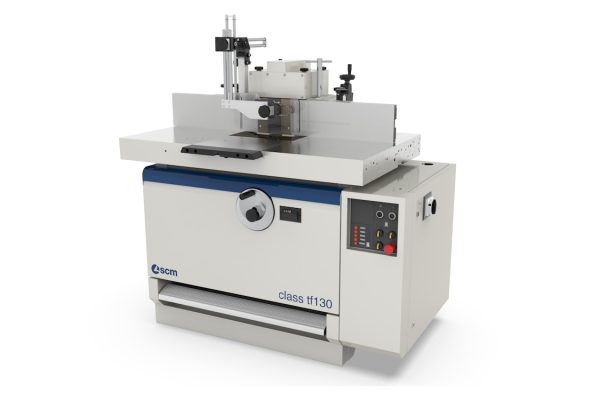

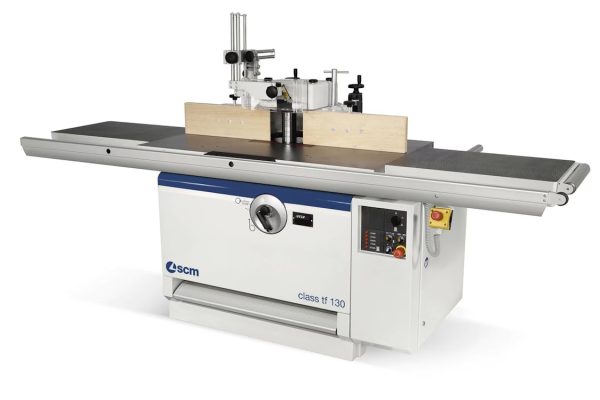

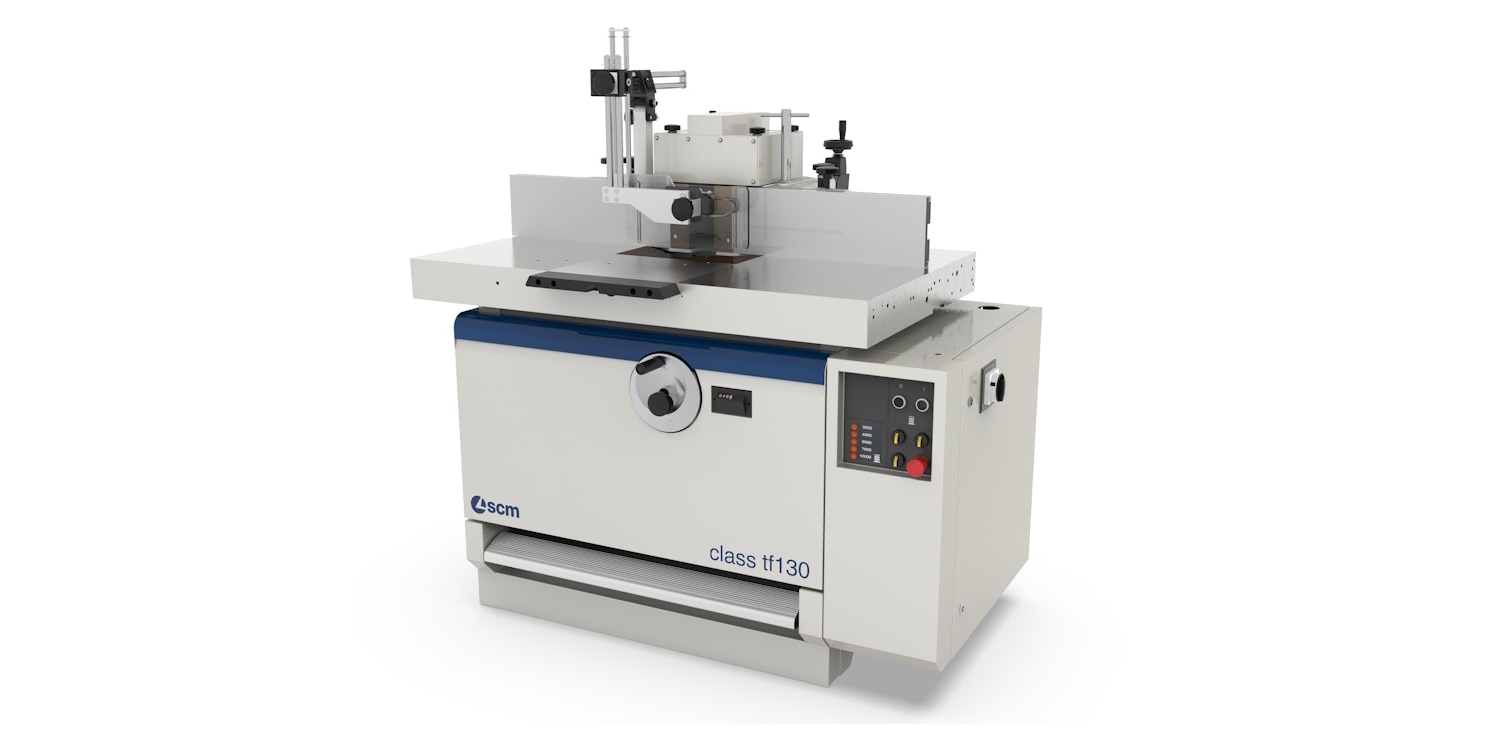

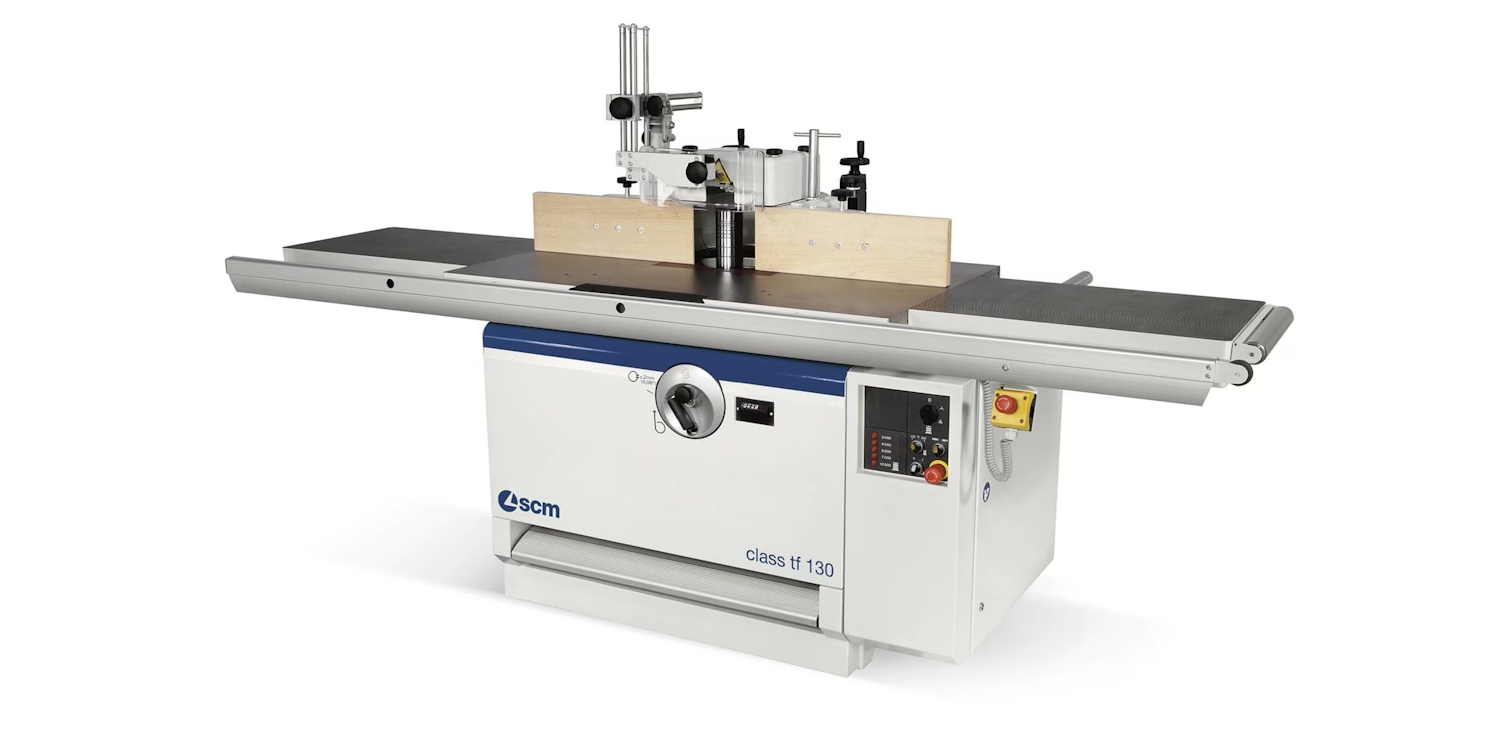

SCM Class tf130 Spindle Moulder
SCM Class tf130 Spindle Moulder – The best solution for every application. Essential and professional the manual version.
Technological devices in the electronic version that guarantee reduced machine set up times, greater safety and ease-of-use.
Set up precision and reliability. The operator easily adjusts all movements due to a hand wheel with mechanical decimal readouts located on the front of the machine.

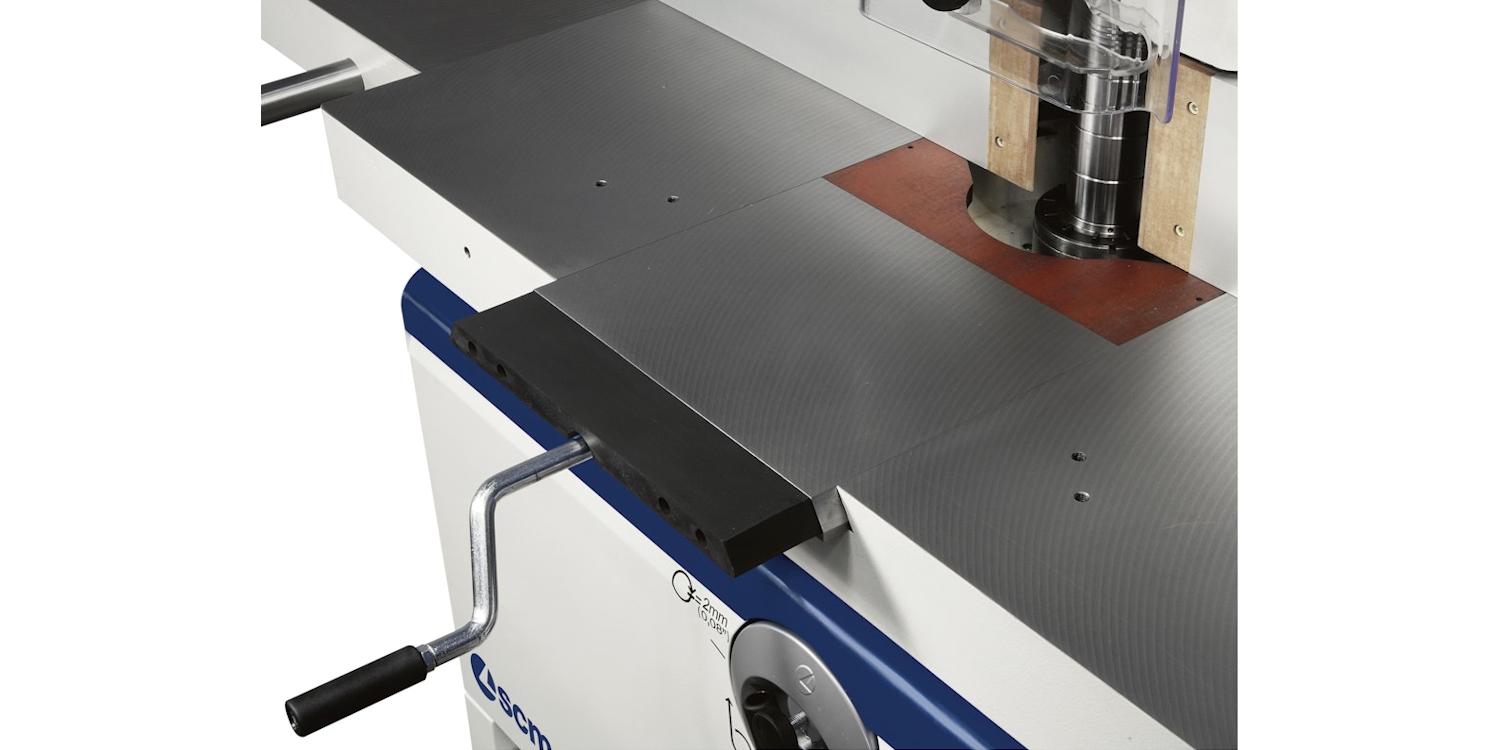

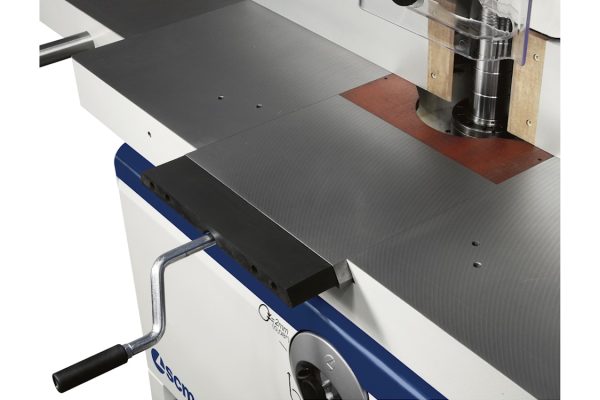

“FAST” sectional worktable: the best support for the workpiece. Provides support for the work piece being machined also close to the tool, allowing the adjustment with mounted tools.

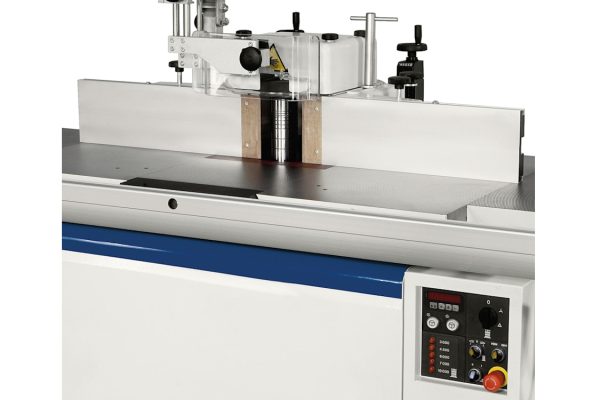

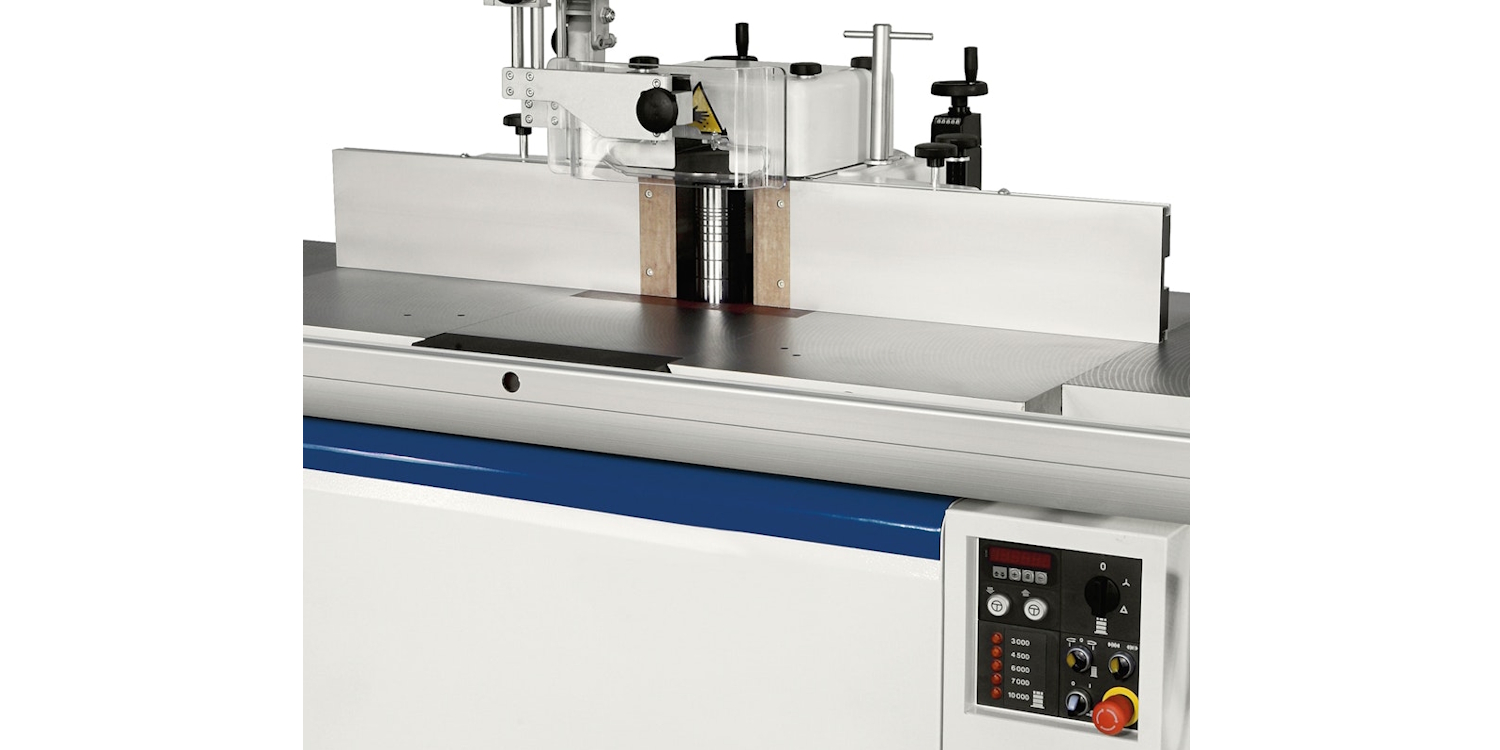

Spindle moulder fence with mechanical programming: maximum set-up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.
Manufacture – SCM
Condition – New
Price – From £8,587 (ex VAT)
Function | Measurement |
---|---|
Worktable Dimensions | 1200 x 730mm |
Ø 30 – 35 (Ø 40 – 50) Spindle Height Fixed Spindle / Interchangeable Spindle | 140 (180)mm |
Spindle Base Projection From Table | 52 (30 versione PS)mm |
Max. Tool Diameter Retractable Under Table (With “Fast” Sectional table) | 320 x 85 (300 x 85)mm |
Options |
---|
Spindle moulder fence with mechanical adjustment |
“FAST” section table replacing the table rings |
Upper mobile control panel |
Manual vertical and horizontal feeder support |
“Flex” spindle moulder fence with mechanical adjustment |
“FLEX” system for spindle moulder fence with mechanical adjustment |
Aluminium fence instead of wooden fence |

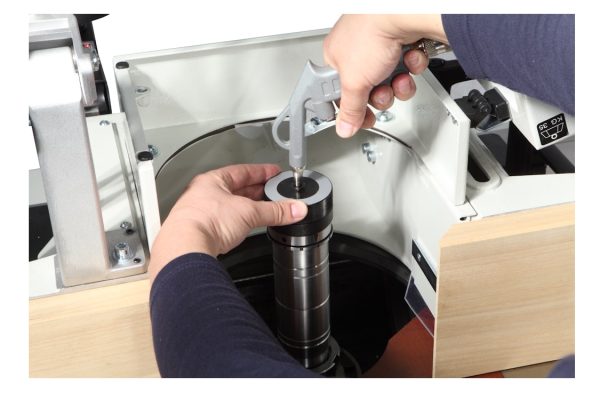

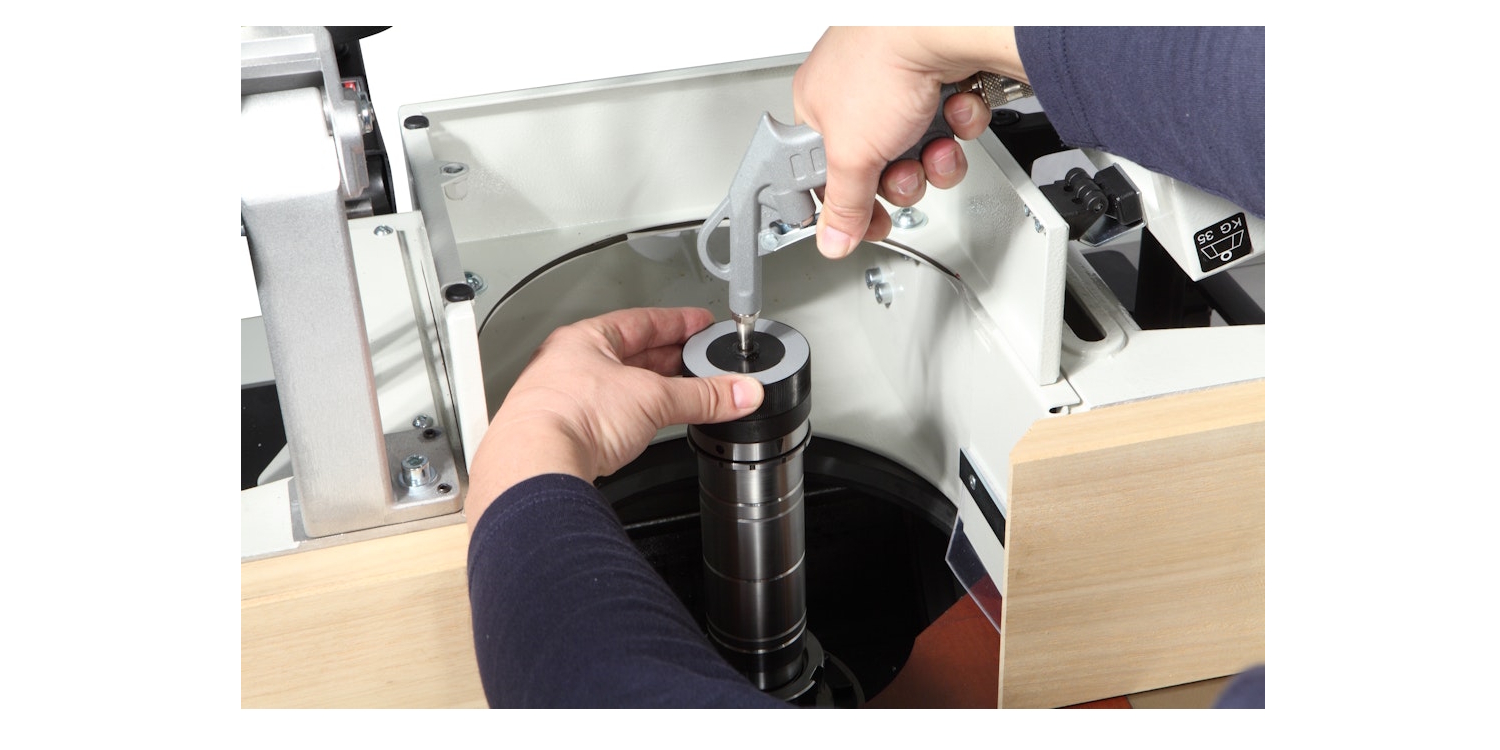

MK5 interchangeable spindle |
Spare spindle (for MK5 interchangeable spindle) |
MK5 right tool taper, complete with ring and collet |
MK5 left tool taper, complete with ring and collet |
“T-SET” rapid tool locking |
“LL” version with 2 cast-iron profiling extensions |
Carriage on fixed table for small tenoning operations |
“TL” version for tenoning-profiling (C.E.) |
PRO-10 “TL” version for tenoning-profiling |
9kW motor power |
Machine configuration for the machining of advanced materials |
