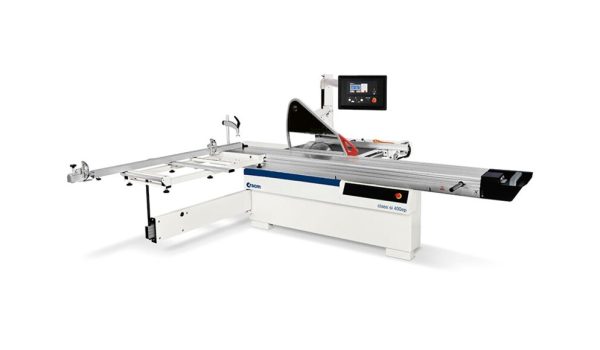

SCM Class si 400ep Panel Saw
SCM Class si 400ep Panel Saw – superior technology combined with an ease of use.
Main Functions
– Connectivity among machines belonging to the same company network and 4.0 Industry preset
– Sharing of work programs and tools database
– Activity monitoring and reporting on the use of the machine
– Connectivity with SCM Thundercut (optimizer/sequencer App)
– Self-diagnosis, tele-service and link to troubleshooting
Manufacture – SCM
Condition – New
Price – From £17,339 (ex VAT)

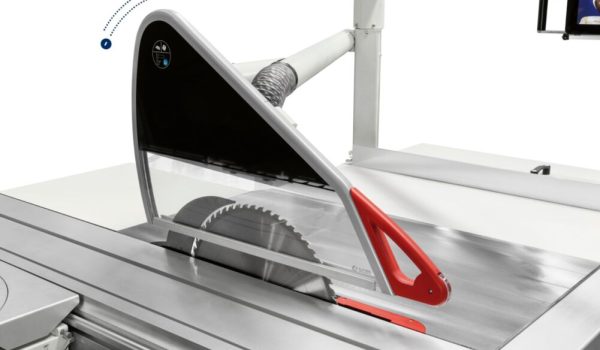

New suspended protection:
– vertical sliding of the protection hood through “cage ball guide” (ricircolo di sfere)
– wheels on protection hood to facilitate the overriding of the workpieces
– improved suction capacity
– cutting line laser projector

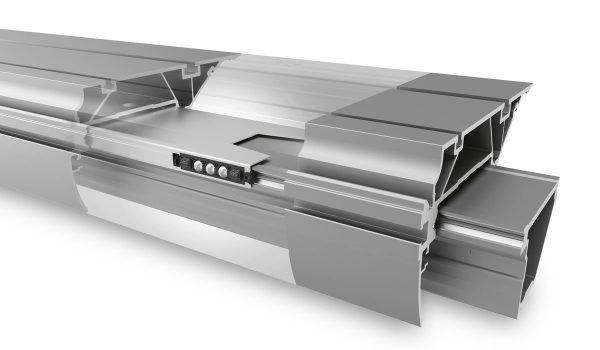

Sliding carriage: maximum cut quality guaranteed over time. The carriage will never require adjustment due to its structure with arch-ground steel slideways (developped by SCM).

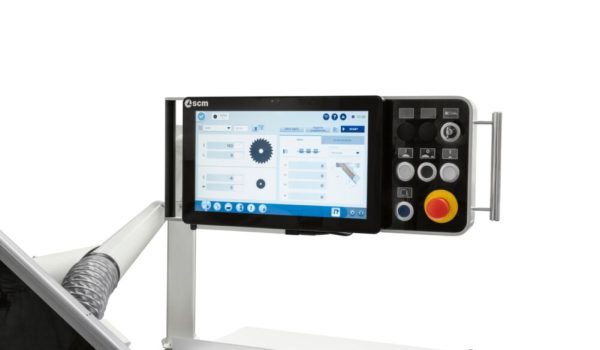

“eye-S” console – The new control panel, with its attractive design, allows easy and intuitive machine programming, combining the 15” colour touchscreen display and the Maestro active user interface.

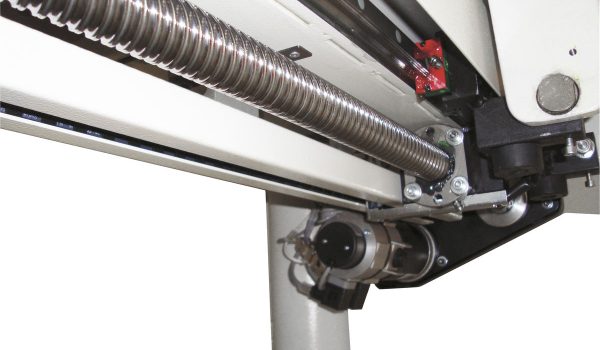

Speed and precision ensured by the motorised programmable rip fence mounted on a recirculating ball screw mechanism with sliding on linear guides.
| Function | Measurement |
|---|---|
| Main Blade Diameter | 400mm |
| Cutting Height At 90°/45° | 140/97mm |
| Blade Tilting | 45° |
| Blades Lifting & Tilt | Programmed |
| Control & Working Height Readout | Ready |
| Main Blade Rotating Speed | 3000 – 4000 – 5000rpm |
| Scoring Unit Rotating Speed | 8500rpm |
| Saw Unit Motor Power | 7kW (9,5Hp) |
| Scoring Blade Motor Power | 1,3kW (1,7Hp) |
| Squaring Capacity With Carriage And Extended Stop | 3200 x 3200mm (3800 x 3200mm option) |
| Cutting Width On Parallel Fence | 1270mm |
