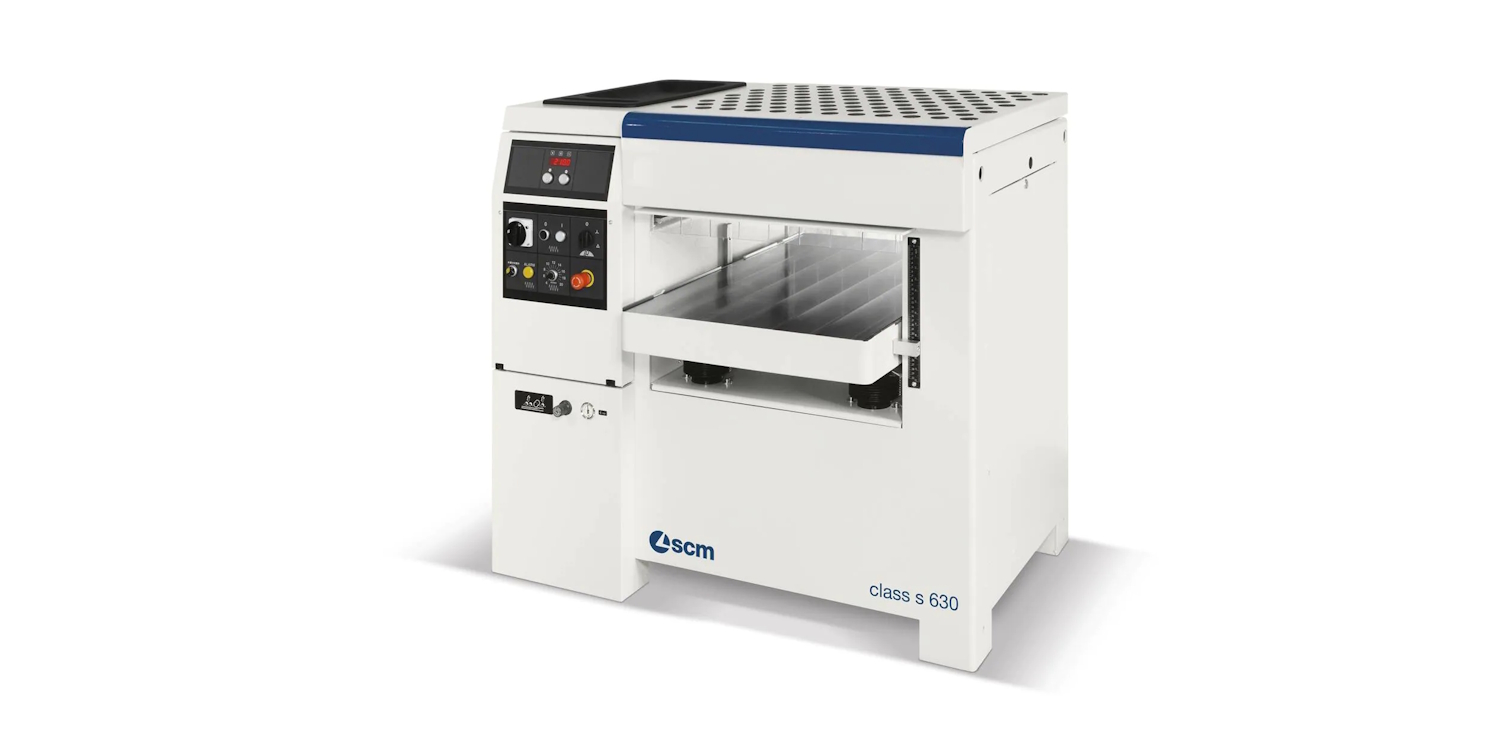

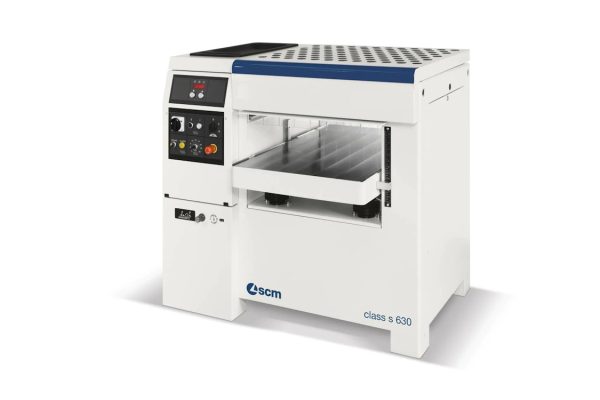

SCM Class s 630 Thicknessing Planer
The SCM Class s 630 Thicknessing Planer guarantees quality at your finger tips. Easy and precise with a practical design for a wider range of applications.
Discover the Xylent cutterhead, available for this machine.
Manufacture – SCM
Condition – New
Price – From £15,065 (ex VAT)
The best finish and effectiveness of the feeding of any material and in any working condition thanks to the pneumatic adjustment of rollers that allows to change at any time the pressure exerted on the work piece.
One machine for every requirement with the interchangeable rollers. Quick and easy changeover of the rollers that allows the operator to configure the machine drive function in case of special requirements such as minimum removal of fine wood and/or batches where multiple pieces of different thicknesses are processed.
Perfect finish with the feeding rollers on connecting roads. The stopping of the work piece and the presence of notches on its surface are eliminated due to the movement system on all three rollers that allows their vertical displacement by rotation and the best linear feeding.
Sturdy structure with precision when moving the work table
The 4 screws with a large diameter combined with the 2 side linear guides ensure worktable stability eliminating the necessity of locking in position. The integrated protections guarantee high precision and reliability over time.
| Function | Measurement |
|---|---|
| s 630 |
|
| Worktable Dimensions | 640 x 1000mm |
| Working Width | 630mm |
| Maximum Working Height (Minimum) | 300 (3,5)mm |
| Maximum Stock Removal | 8mm |
| Variable Feed Speed With Inverter | 4 ÷ 20m/min |
| Main Motor Power | 7kW (9,5Hp) |
| Options |
|---|
| Pneumatic pressure adjustment on top feed rollers |
| Thicknessing table with 2 idle rollers |
| Rectified thicknessing table |
| First top feed roller with rubber coating |
| First roller coated with 2 diff. types of rubber for varying thicknesses |
| 1st sectional feed roller in steel alternative to the std toothed roller |
| Steel outfeed roller/s instead of the rubber-coated steel roller/s |
| “TERSA” type cutter block with throwaway knives |
| “Xylent” spiralknife cutterblock with 3 series of knife |
| Xylent maintenance kit |
| 10 spare inserts kit (15x15x2,5) for Xylent spindle |
| Worktable extension in outfeed (630 x 1200mm dimensions) |
| Motor 9 kW |
| Machine configuration for the machining of advanced materials |
| Electronic adjustment of the feed speed by means of inverter 1 ÷ 5 m/min |
