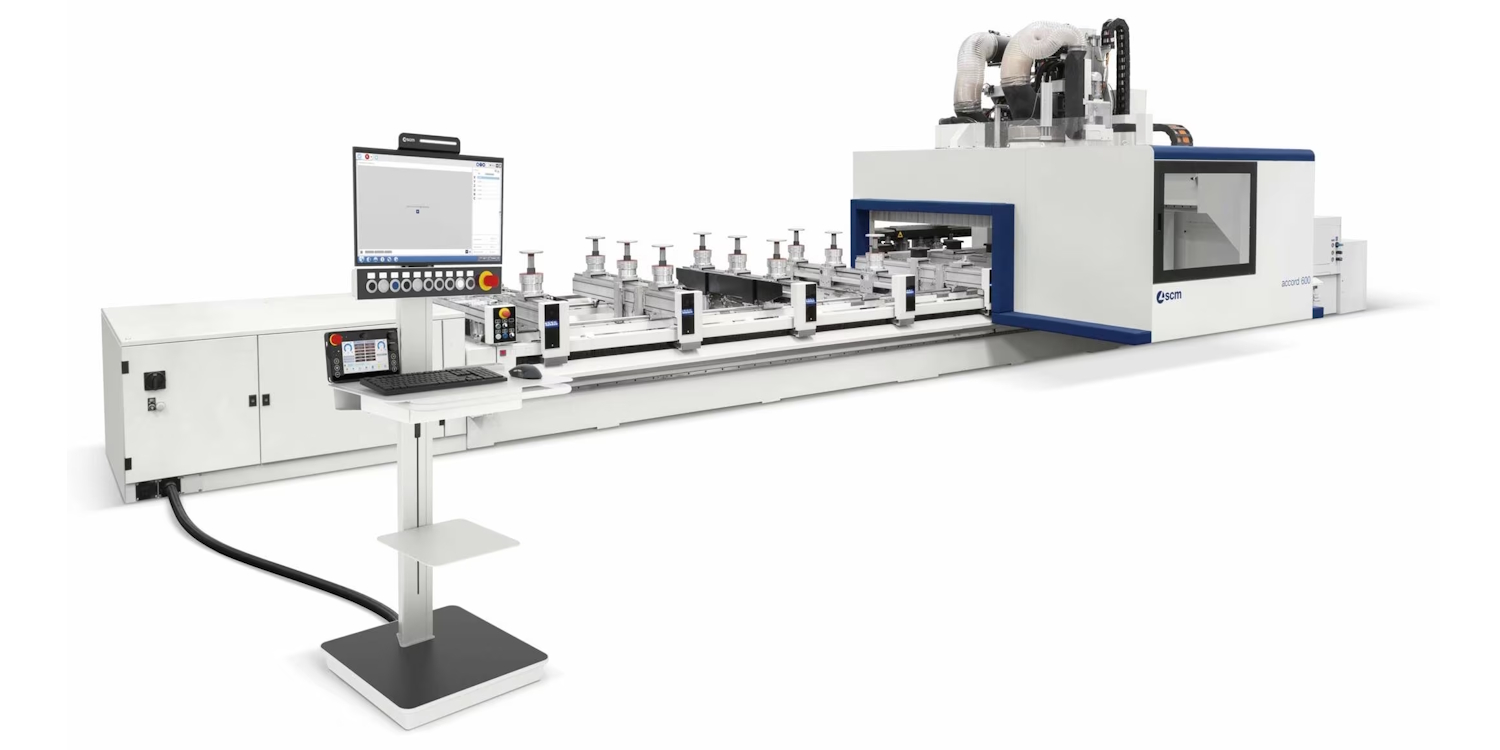

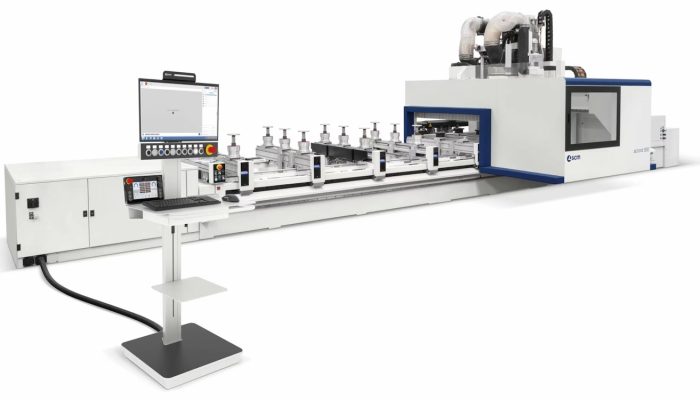

SCM Accord 600 CNC Machining Centre
The SCM Accord 600 CNC Machining Centre offers an optimal design solution that balances performance with efficiency for machining doors, windows, stairs, and solid wood components, while also fulfilling the standard needs of the furniture sector.
To enhance production efficiency, this machining center features a high-performance work unit that comprises three independent units, significantly reducing production times.
Manufacture – SCM
Condition – New
Price – POA
HIGH PRODUCTIVITY

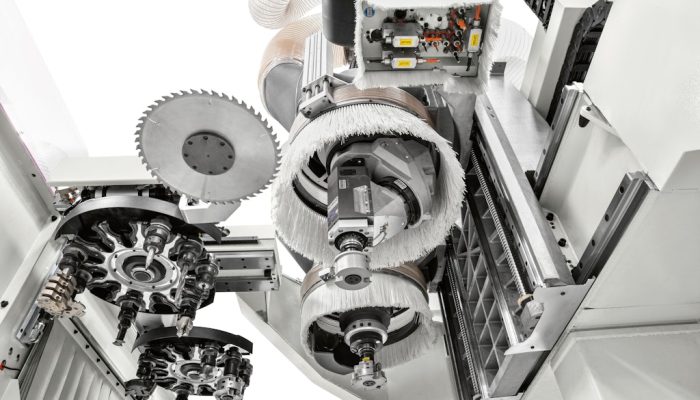

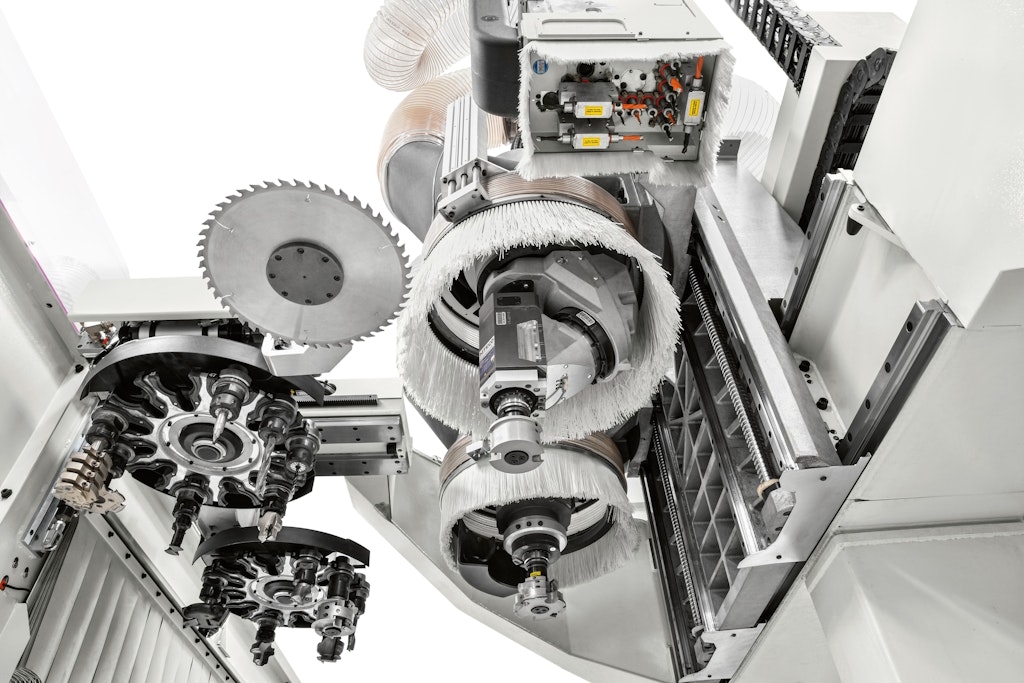

Tool changes in hidden time: the operator group features two independent units, with 4- and 5-axis electrospindles, each equipped with its own on-board tool changer.
NO LIMITS
The brand new “Optizone” patented system transforms the CNC bar machining centres: with a simple click, the size of the two work areas can be defined as early as the programming stage, according to the pieces to be machined. This function is also available for the clamps.
TOTALLY INDEPENDENT

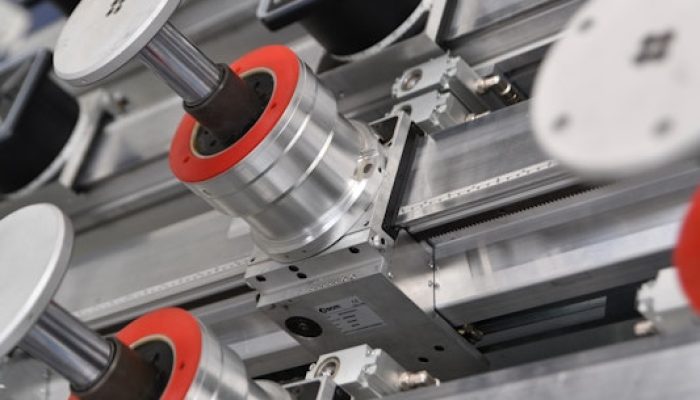

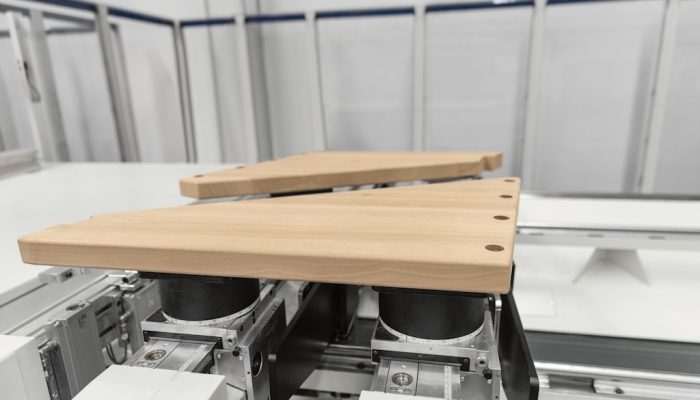

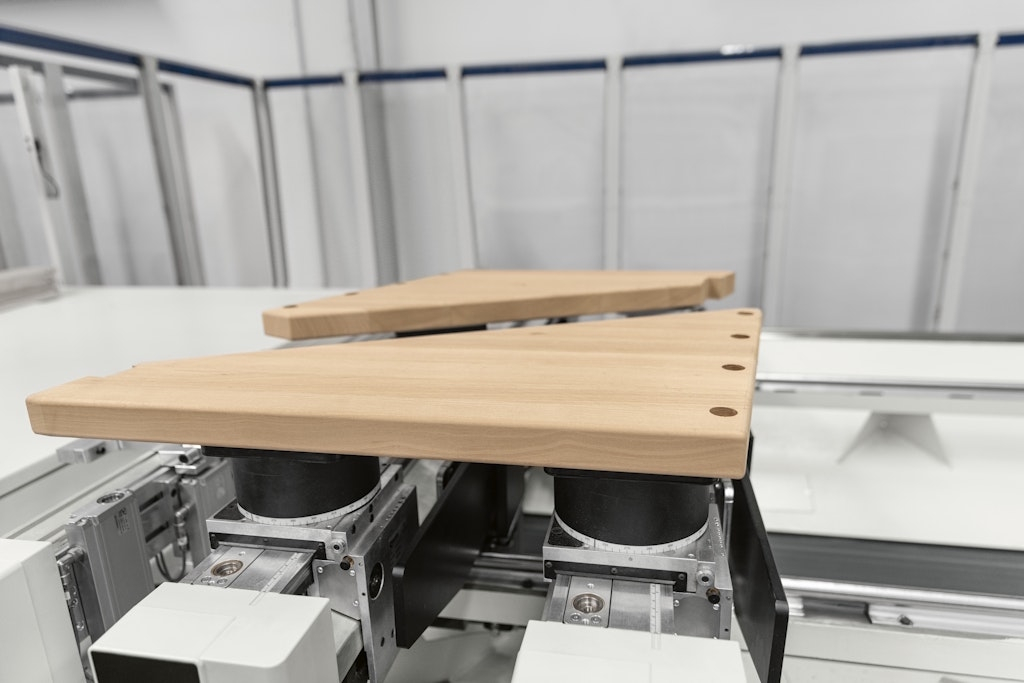

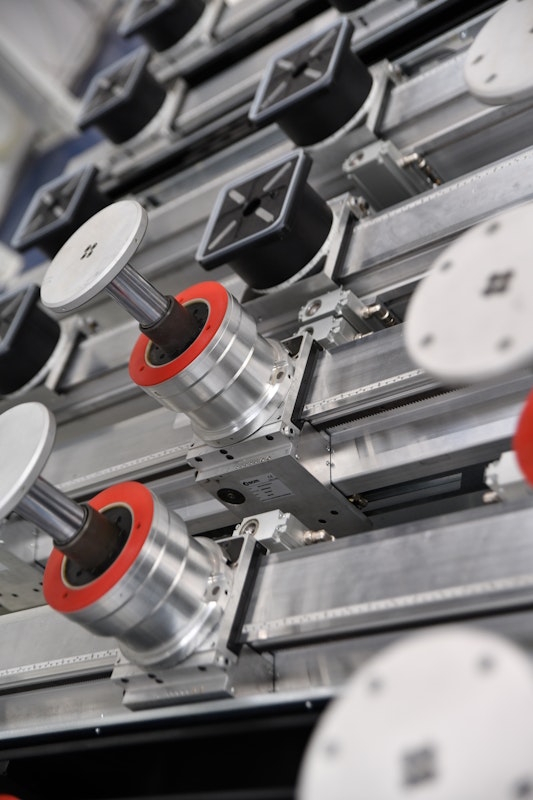

With the SVP – Single Vacuum Pods function is possible to independently secure the pieces on each semi-table. Pieces can be loaded onto the machine by activating one suction unit at a time for an excellent management of the scraps.
FLEXIBILITY AND INNOVATION

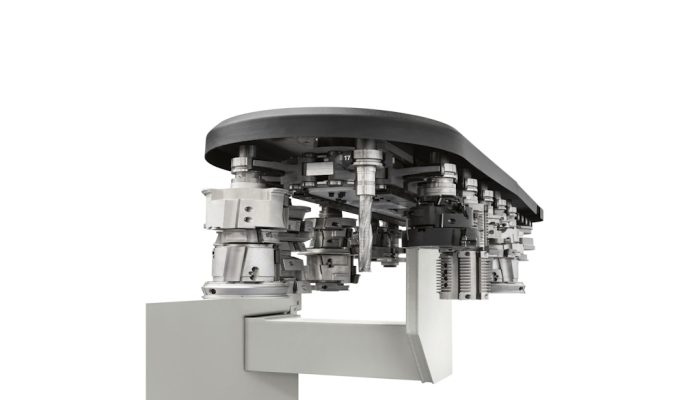

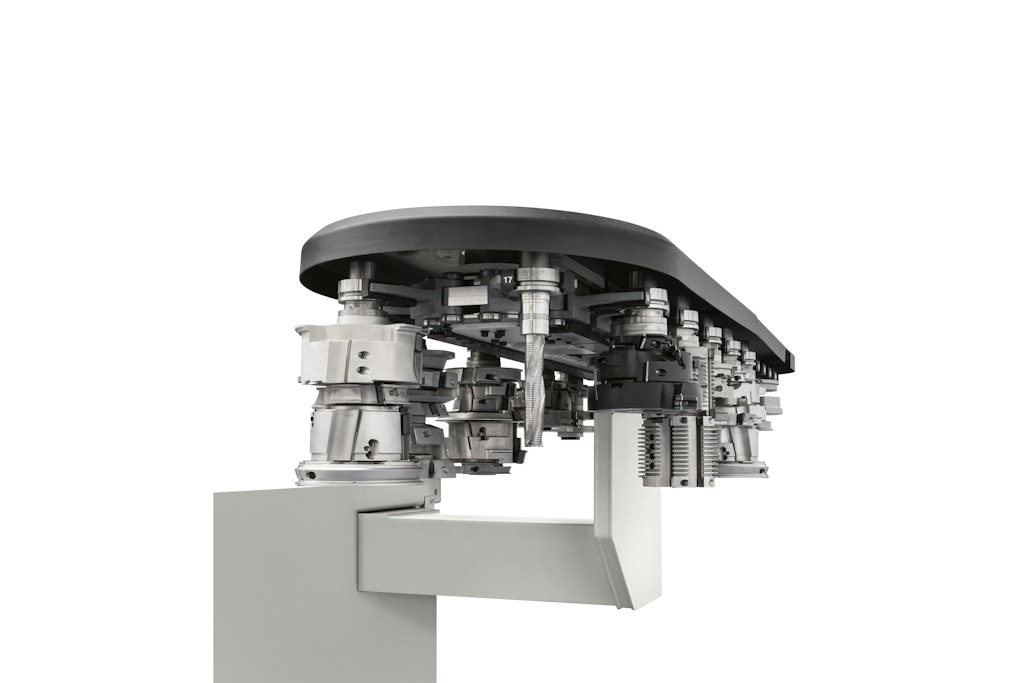

Up to 106 tools always available on board with integrated QUADRO 35 and CADDY 35 tool changers, the last keeps on playing the dual role of tool changer and “warehouse” serving the other on-board tool changers.
| Working areas | |
|---|---|
| X-Y-Z axes dimensions | 3715 x 1600 x 300mm 3715 x 1900 x 300mm 5515 x 1600 x 300mm 5515 x 1900 x 300mm 6715 x 1600 x 300mm 6715 x 1900 x 300mm |
| Axes | |
| X-Y-Z axes max. speed | 90-80-45m/min |
| Routing unit | |
| 5 axes electrospindle motor power (max.) | 13,5kW (18,4Hp) |
| 3/4 axes electrospindle motor power (max.) | 21kW (28,5Hp) |
| 5 axes electrospindle rotation speed (max.) | 24000rpm |
| 3/4 axes electrospindle rotation speed (max.) | 24000rpm |
| Tool changers | |
| TRB side tool changer | 11 positions |
| CADDY side tool changer | 35 positions |
| RAPID rear tool changer | 16 positions |
| QUADRO rear tool changer | 35 positions |
| VELOCE on-board tool changer | 12+12 positions |

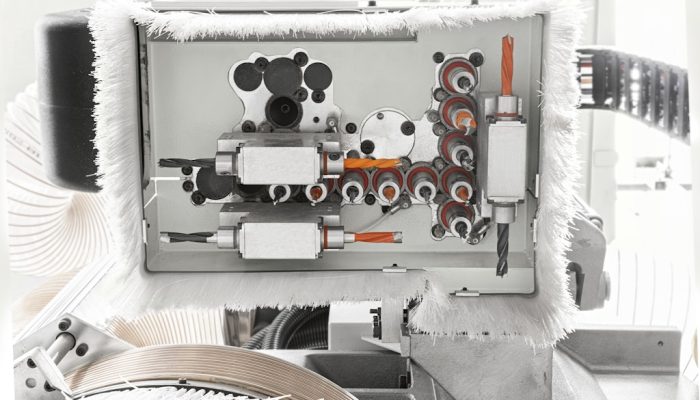

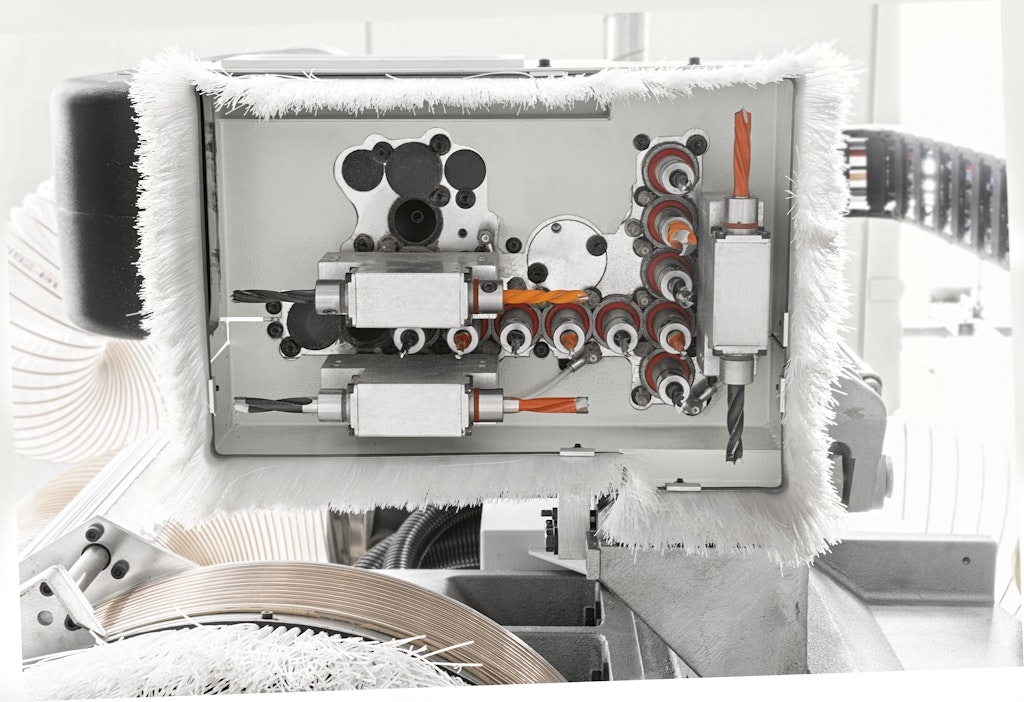

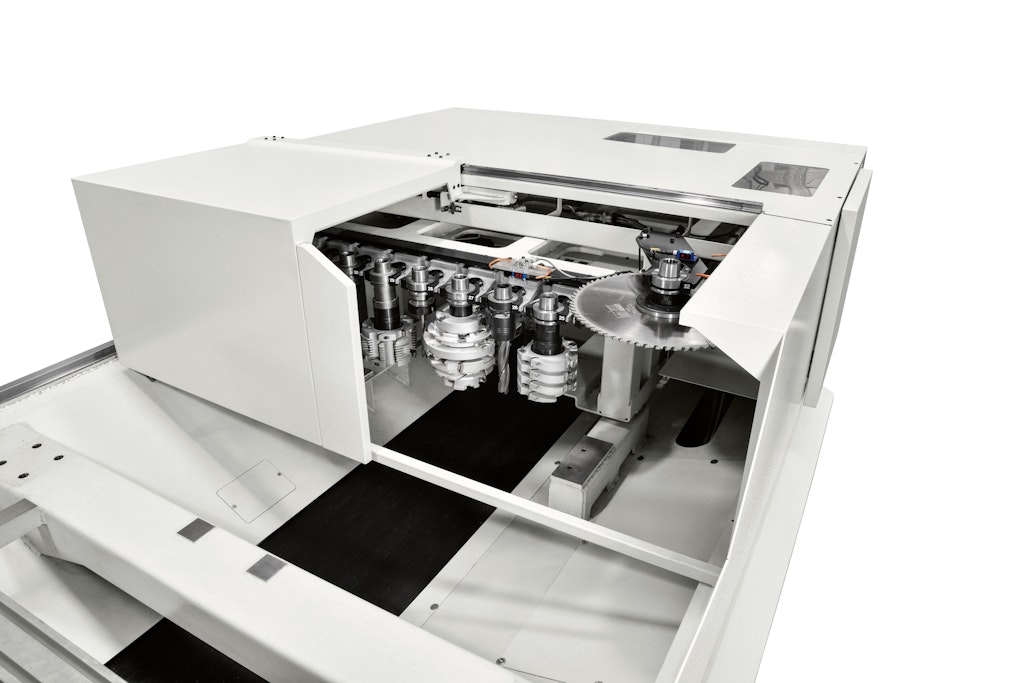

| Drilling unit | |
| Vertical and horizontal spindles (up to) | 26n. |
| Rotation speed (max.) | 8000rpm |
| Integrated saw blade | 125Ø |
