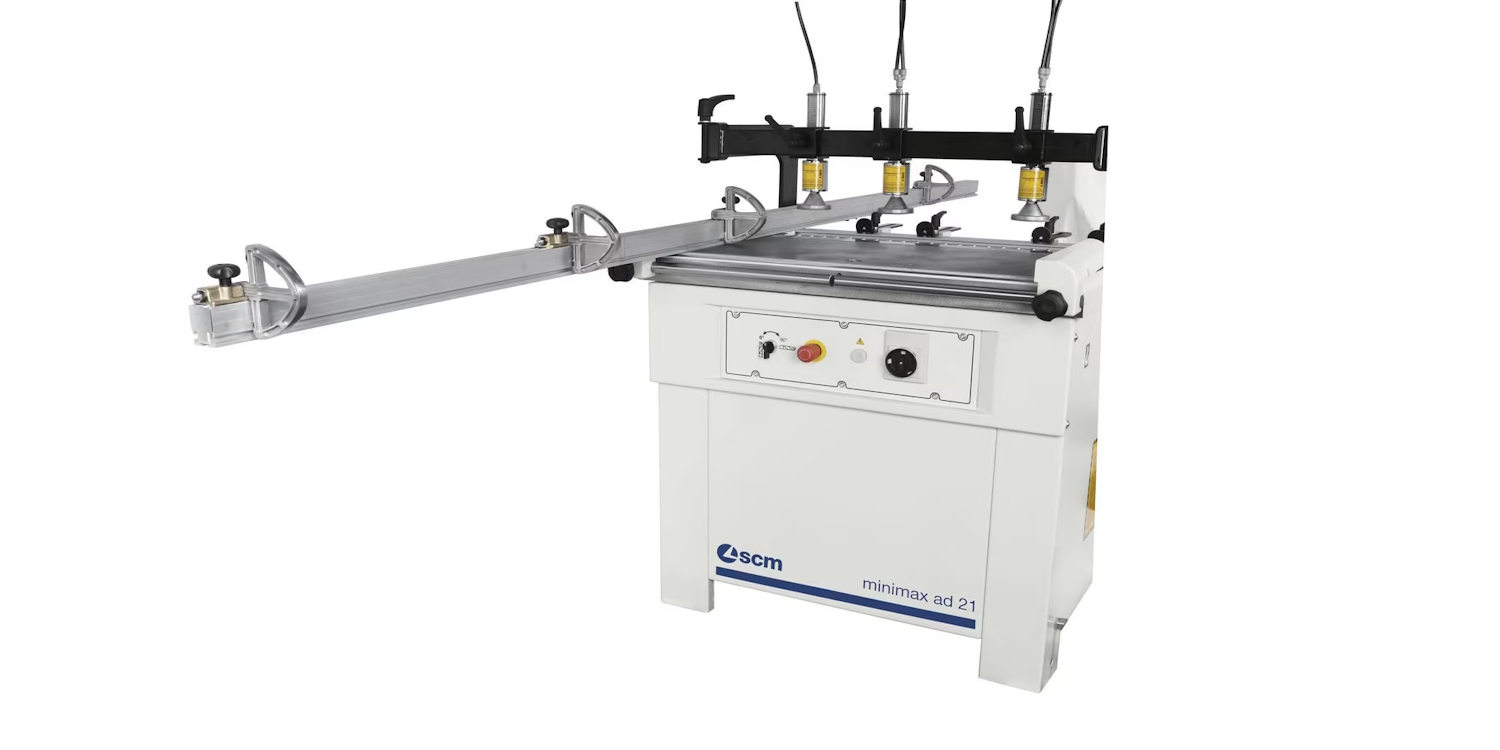

SCM Minimax Ad 21 Multi Drill

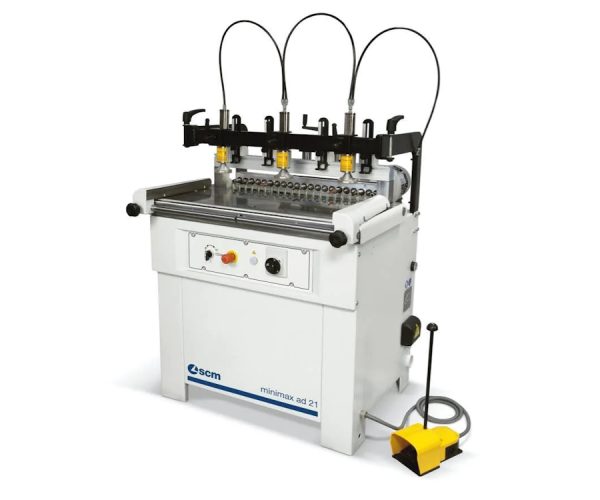

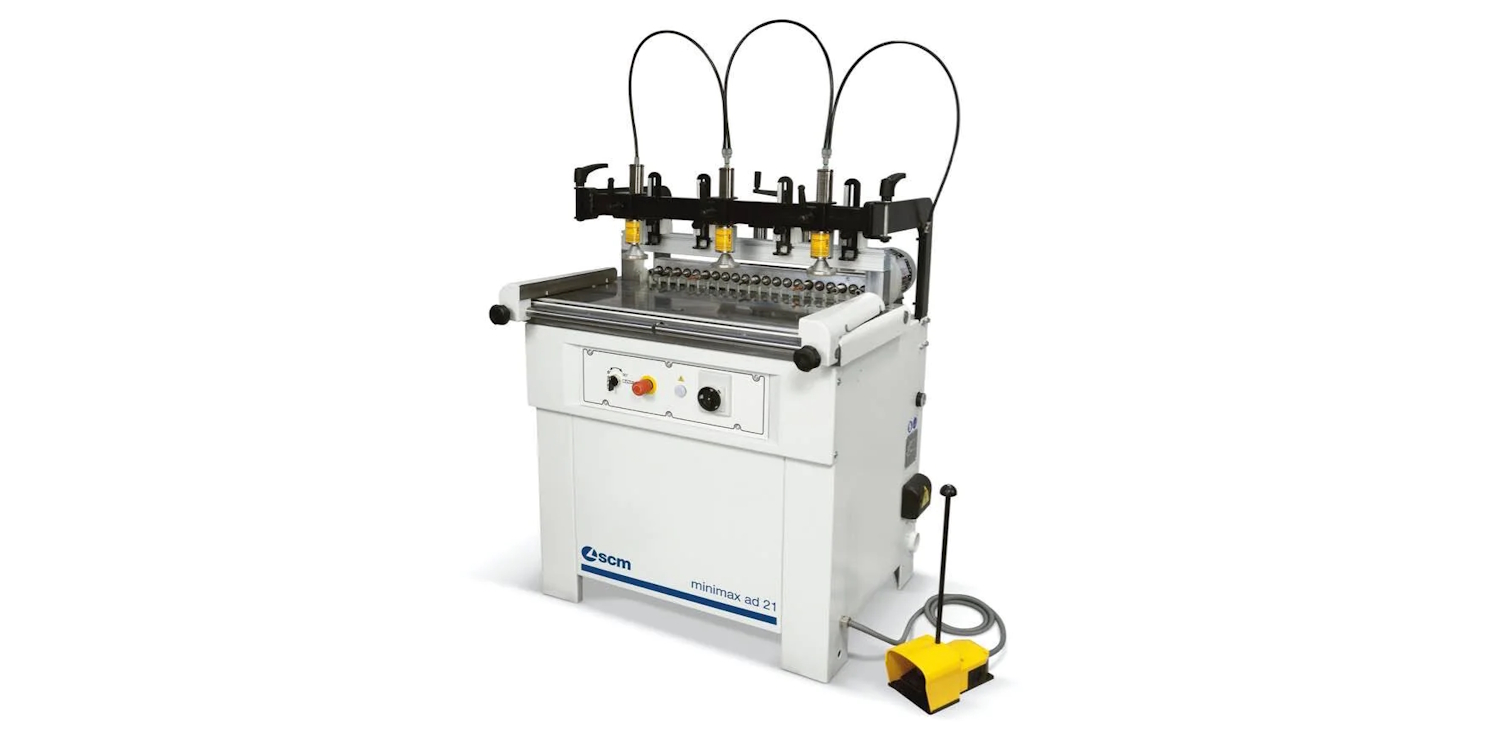

The SCM Minimax Ad 21 multi drill is a single head multiple boring machine with 21 spindles ideal for craftsmen and professional workshops.
A perfect vertical, horizontal and 45° drilling operation, thanks to the boring head made from single-piece aluminium casting. New exhaust system, integrated into the boring head, incredibly efficient. Great versatility, thanks to the possibility to equip the spindles with various kind of optional devices like the one to make borings for hinges.
Manufacture – SCM minimax
Condition – New
Price – From £4,783 (ex VAT)
Drilling Head

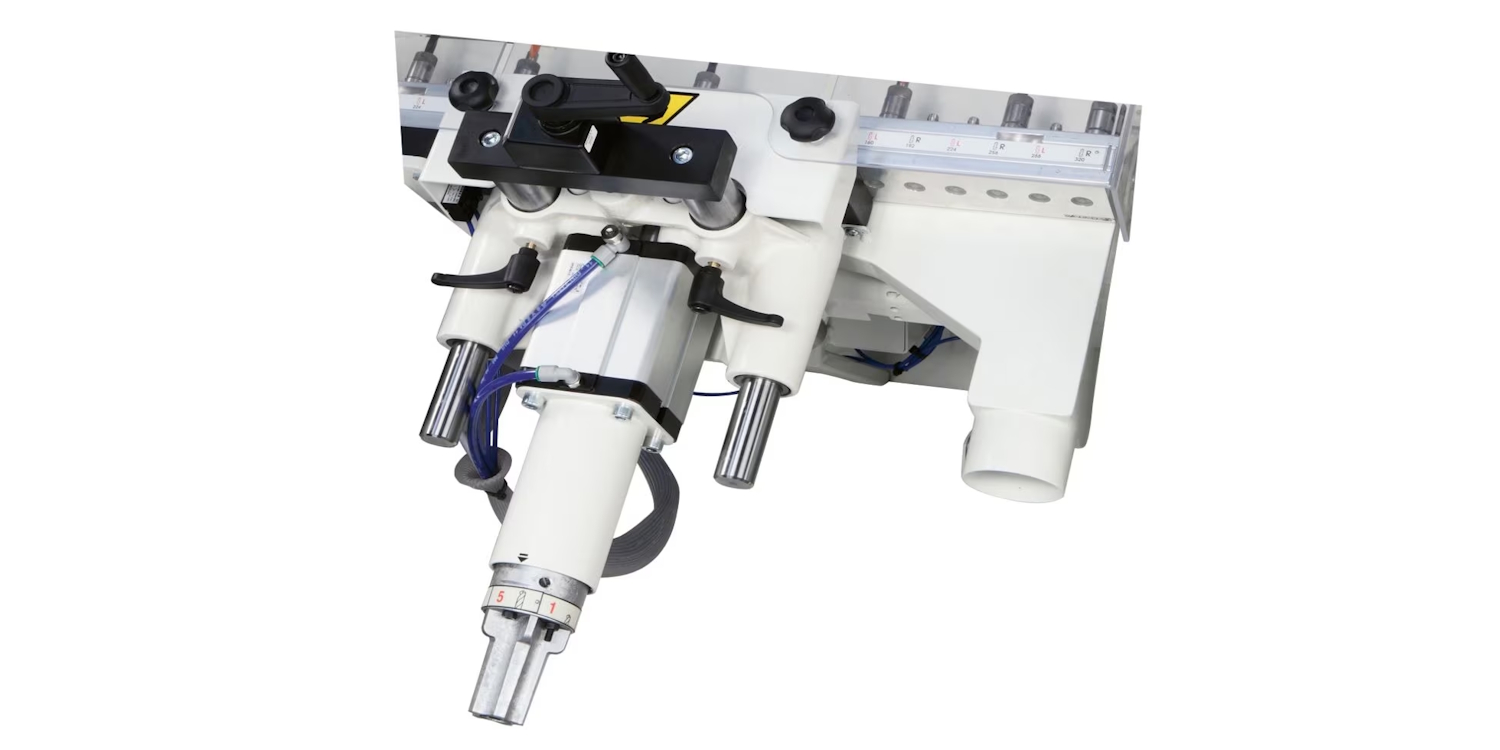

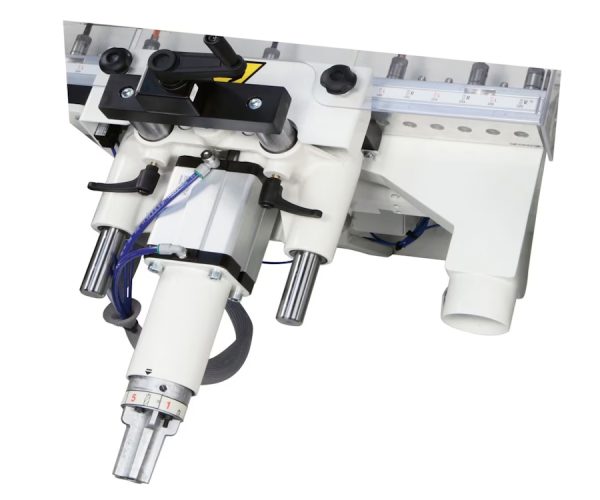

Drilling head made from single-piece aluminium casting, to guarantee absence of vibrations. The boring unit runs on two rectified cylindrical guides which guarantee stability and precision. The machine is equipped with a mechanical revolver with 5 different boring depth adjustments. The new dust extraction system is incredibly efficient, and leaves the machine surprisingly clean.
Precise positioning

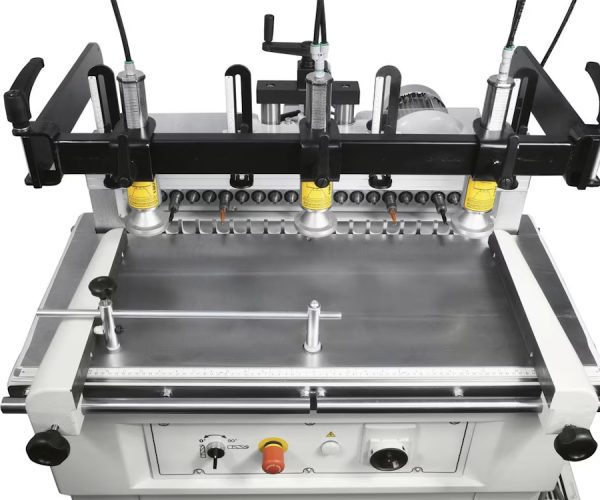

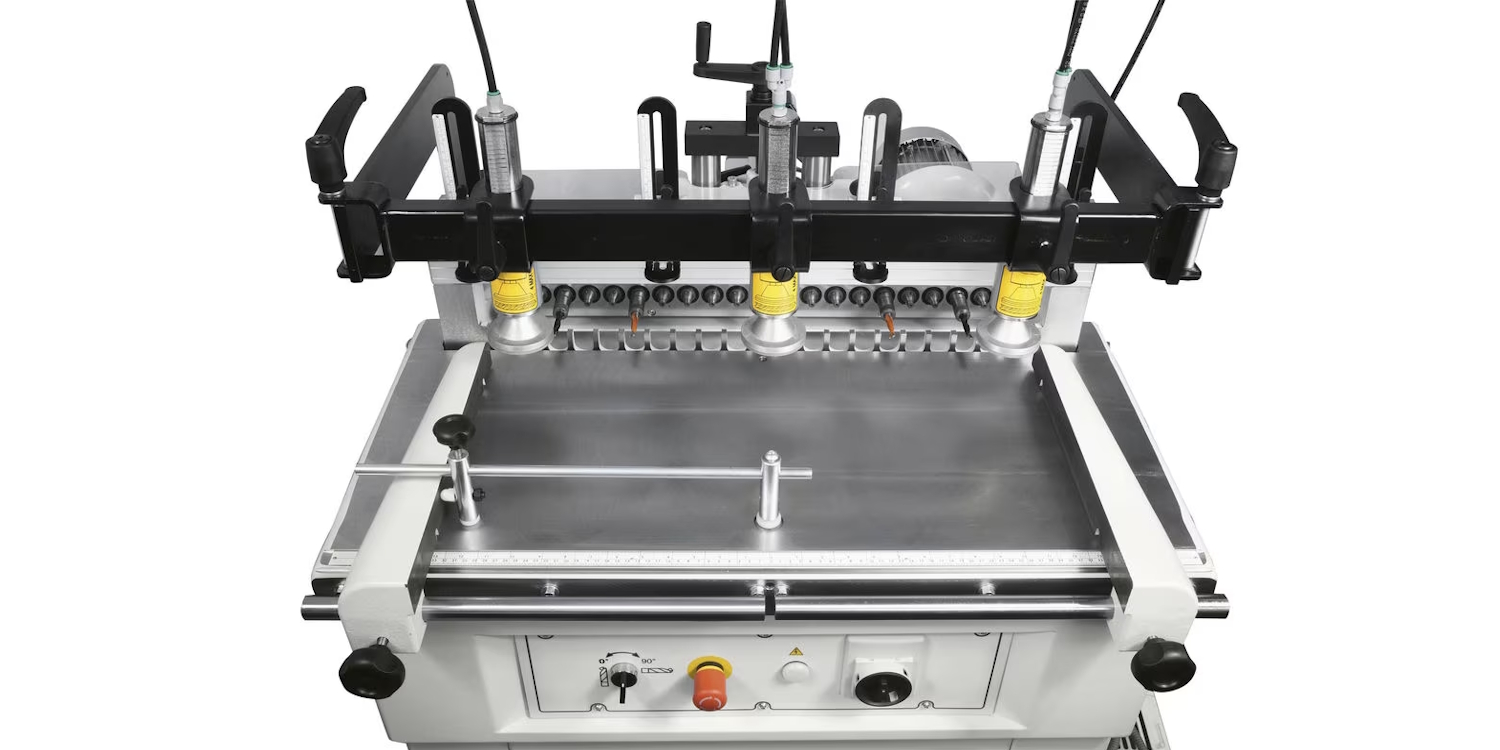

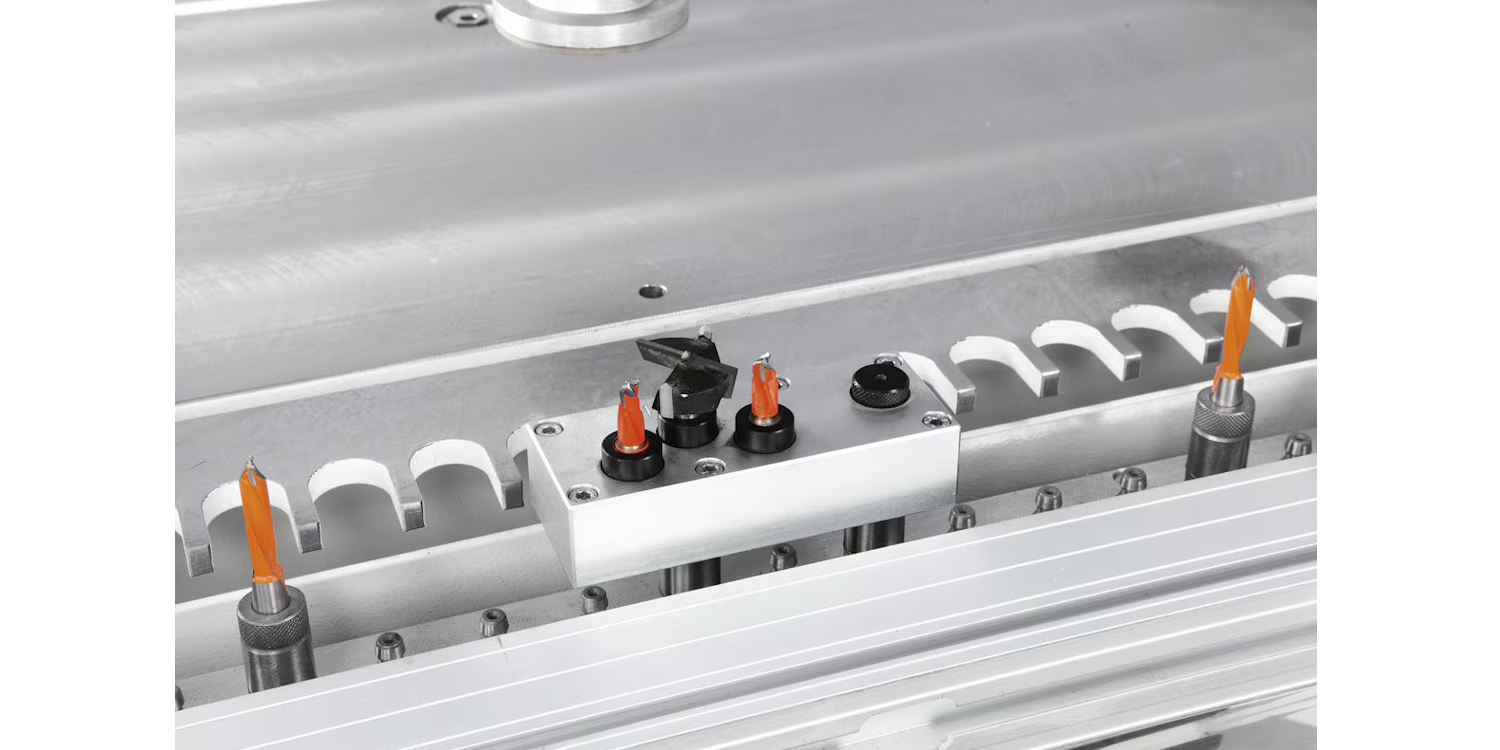

The mechanical gauge guarantees fast and precise positioning of the lateral fences. For increased versatility, the quick-change chucks can be fitted with various types of bits for different operations, like boring hinges locations.
Controls

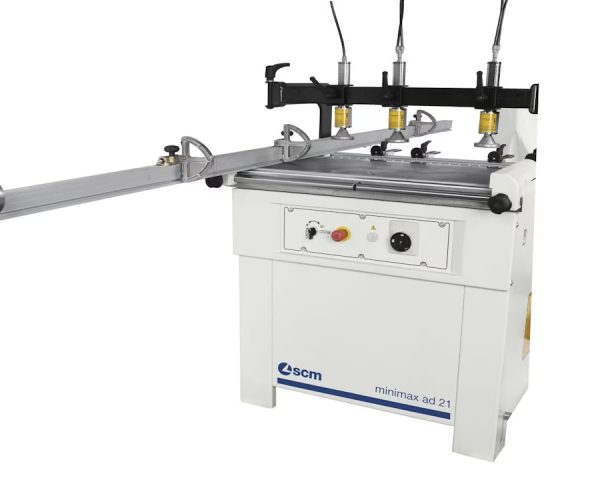

All controls are ergonomically positioned on the front of the machine. This includes the switch which sets the boring head at a 45° angle, allowing for an immediate changeover between operations. For perfect boring of large panels, the machine has a long 3000 mm fence with a scale and retractable stops. The fence is quickly mounted and removed easily.
| Function | Measurement |
|---|---|
| Worktable Dimensions | 905 x 372mm |
| Worktable Height | 900mm |
| Number of spindles | 21 |
| Spindle centre-to-centre | 32mm |
| Max. Tool Diameter | 40mm |
| Max. boring centre-to-centre | 640mm |
| Max. height of horizontal boring operation | 60mm |
| Spindles Speed | 2800rpm |
| Min, / Max. Panel Height | 10 / 85mm |
| Max Panel Width | 833mm |
| Max. boring head stroke | 70mm |
| Boring head motor | 1.8kW |
| Exhaust outlets diameter | 80mm |
| Options |
|---|
| Servo-assisted boring unit down stroke speed adjustment |
| Horizontal/vertical automatic positioning of boring unit |
| No. 1 upper pneumatic clamping cylinder for the holddown and n. 2 supplementary rear stops |
| No. 5 drilling bit-holder bushes 10 mm diameter |
| N. 11 drilling bit-holder bushes 10 mm diameter |
| Fence for horizontal boring at 45° |

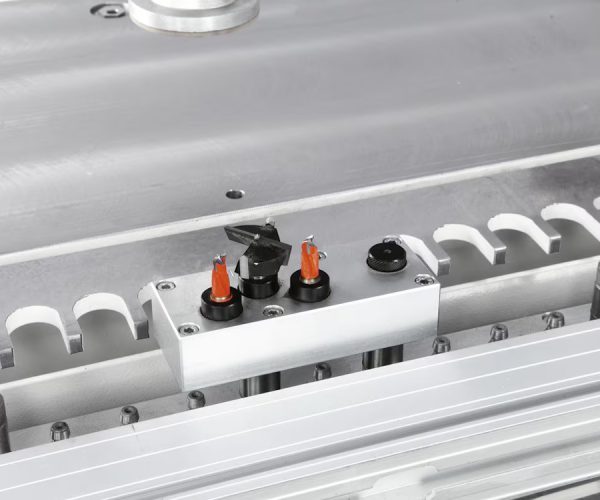

| Group for the machining of hinges for cabinet doors |
| Single-phase version |
