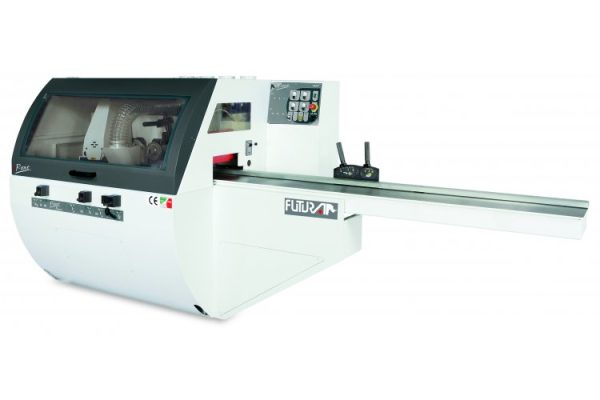

Futura Metalstar P One Basic
The Futura Metalstar P One Basic is an automatic 4 sided planer, compact and robust, capable of working wood of up to 230mm in width and 130mm in height.
It is ideal for the joineries, because of its excellent performance with fast and accurate processing and the best ratio between quality and price.
Each operating shaft is driven by an independent motor and the starting is made through a start/stop button panel. The transmission of the towing rollers uses robust and reliable universal joints and is equipped with pneumatic pressure cylinders.
Manufacture – Futura
Condition – New
Price – From £21,450 (ex VAT)
The P.ONE BASIC is extremely useful in operations of straightening and planing on wood purchased from joineries.
When the wood is crooked and/or raw, the machine makes it a perfect board and therefore suitable for the later production processes.
The P.ONE BASIC 23/4 has been designed to work wood of maximum 230 x 130 and each of its working shafts has its own motor.
The towing is composed of universal joints.
Precise, fast, and secure setting of the machine.
It fully complies to all the safety parameters required by the European Community.
The machine is tested and inspected carefully before being delivered to the customer.
STANDARD EQUIPMENT
• Single piece fabricated base.
• In-feed table with ground steel bars,
• Independent motor unit to each spindle,
• Poly “V” drive belts instead of flat belt
• Powered rise and fall.
• Pneumatic pressures to the feed rollers
• Pre – planer roller with pneumatic exclusion
• Feed rollers driven by double chain drive and cardan joints.
• Numerical readout to the thickness & width
• Bed lubrication pump to reduce friction when feeding
• Air Blowers to reduce friction when feeding timber
• Tersa cutter blocks 4 knife
• Min working width kit with 10mm rollers
| Function | Measurement |
|---|---|
| Max. Working Width | 230mm |
| Min. Working Width | 25mm |
| Min Working Width With 10mm Roller Kit | 15mm |
| Max Working Height | 130mm |
| Min Working Height | 8mm |
| Min Work Piece Length | 250mm |
| Spindle Speed | 6000rpm |
| Shaft Size | 40mm |
| Infeed Table | 2300mm |
| Feed Speed | 7 & 14m/min |
| Feed Roller Dia | 130mm |
| MOTORS | |
| Planer Spindle Motor | 7.5Hp |
| Upper Horizontal MotorRH Spindle Motor | 5.5Hp |
| LH Spindle Motor | 5.5Hp |
| Upper Horizontal Motor | 7.5Hp |
