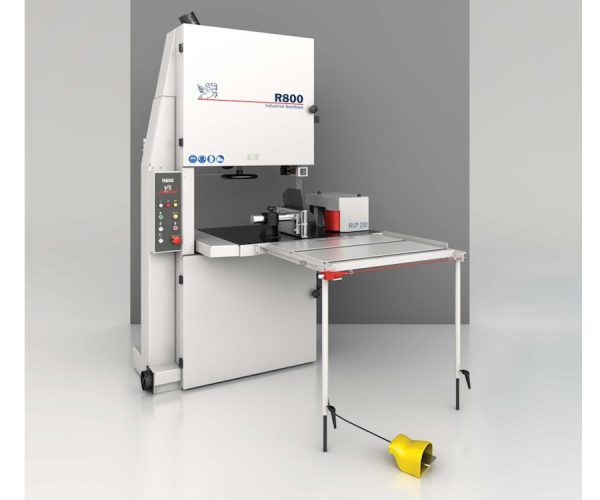

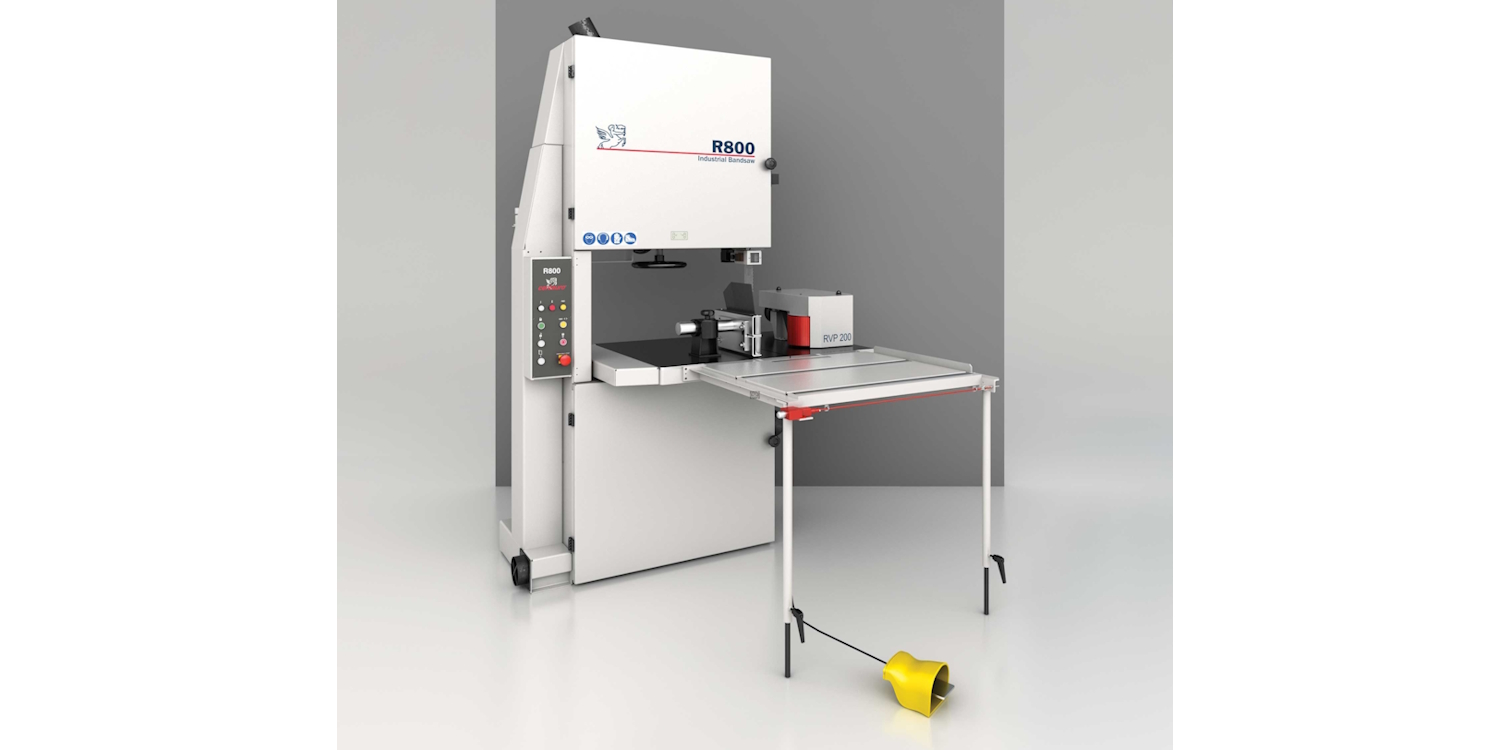

Centauro r800 Resaw
The Centauro r800 resaw is a heavy-duty bandsaw with a wide blade, expressly designed, structured and sized to be equipped with a mechanical workpiece feeding unit.
Dimensioned to withstand the high power of the main motor and the high cutting rate, and can accept sawblades of 80 mm width.

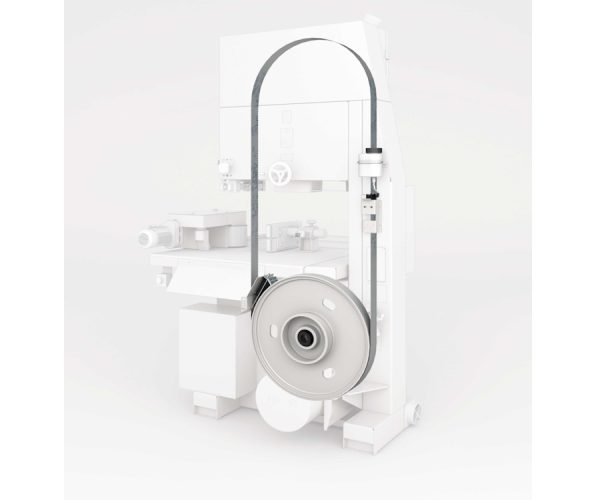

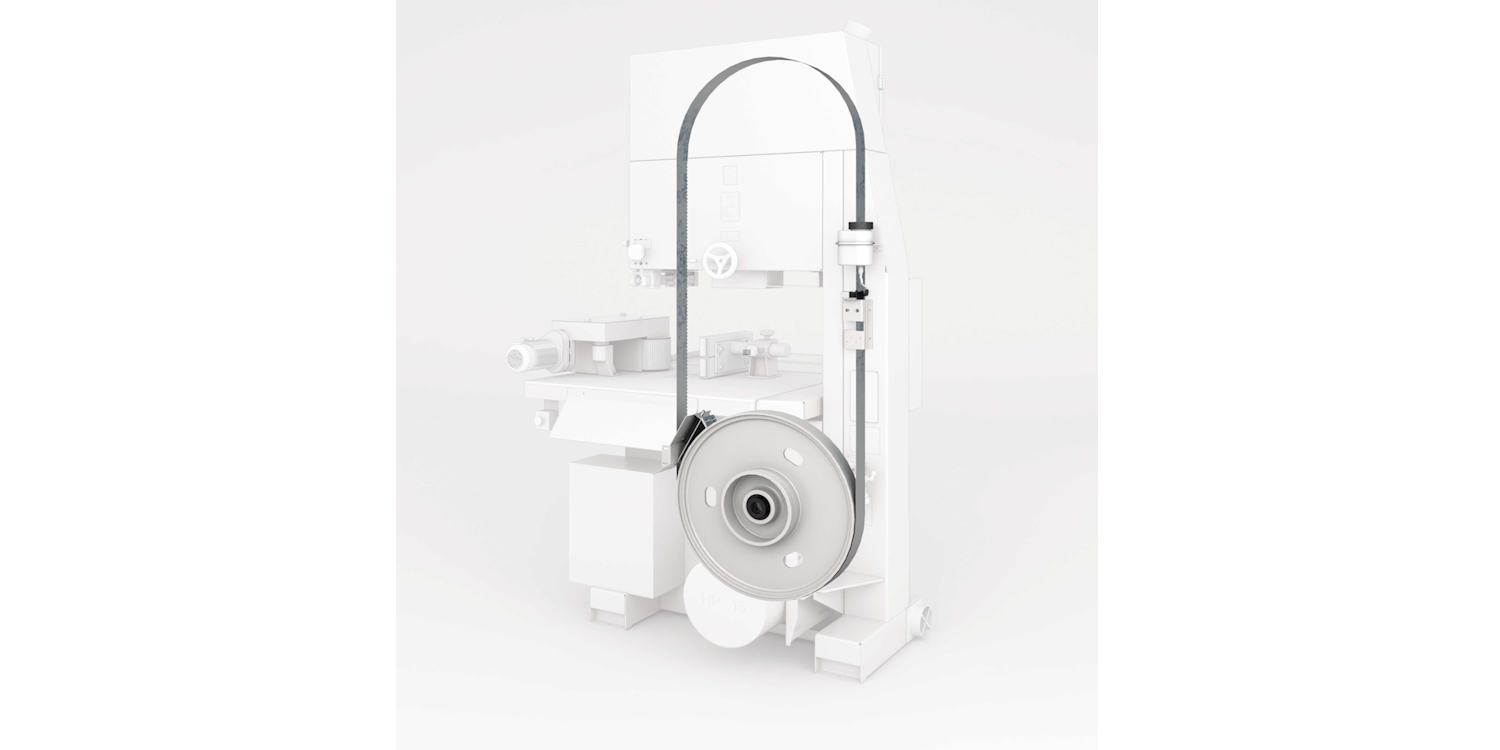

The robust frame is made of electric-welded sheet steel. The cast-iron disc flywheels are very thick to ensure the maximum efficiency and they turn on dustproof ballbearings for total protection. The bottom one, in addition, has a considerably reinforced outer band which gives it greater inertia without putting too much strain on the sawblade when starting up and braking. To further improve operating evenness, they are ground on the band in contact with the blade and are accurately balanced.
Manufacture – Centauro
Condition – New
Price – From £15,275 (ex VAT)
STANDARD EQUIPMENT
• Automatic star-delta starter. (manual starter for Non-CE version)
• Pneumatic wheel braking. (footbrake for Non-CE version)
• Motor protection switch.
• Front and rear emergency push-button. (only front for Non-CE version)
• Front infeed rollers with emergency protection cable. (only supplied for CE-version with Feeder)
• Safety micro-switches to doors.
• Safety micro-switch to footbrake. (only for Non-CE version)
• Steel-table, tilting upto 15°.
• Top and bottom guide with wooden blocks.
• Friction rack-pinion and telescopic blade guard.
• Cleaning scrapers on wheels.
• Sawblade tension indicator.
• Sawblade cleaning and cooling felt.
• Steel sawblade ready for use.
Function | Measurement |
---|---|
Diameter Of Flywheels | 800mm |
Max. Height Of Cut | 400mm |
Max. Width Of Cut | 780mm |
Max. Blade Width | 80 x 0,8mm |
Max. And Min. Blade Length | 5530 / 5380mm |
Wheels Speed | 680giri/min |
Blade Speed | 28,5mt/sec |
Table Height | 950mm |
Table Size | 1060 x 800mm |
Table Inclination | 15° |
Motor Power | 15kW |
Sawdust Hoods | N°2 Ø 100/120mm |
Required Capacity For Extraction System | m3/h1430 (for air speed 20 mt./sec.) |
Working Pressure Of Pneumatic Brake Bar | 6 -8 |
